Material ID: 6GK5005-0BA00-1AA3Product Description

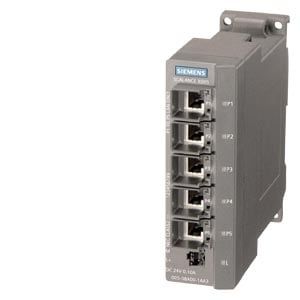

Spare Part - SCALANCE X005

Technical Features:

Commercial Benefits:

Accessories:

    • Switch Type: Unmanaged
    • Number of Ports: 5x 10/100 Mbps RJ45
    • Power Supply: 24 V DC
    • IP Rating: IP30
    • Securing Collars: PROFINET-compliant
    • Autocrossover Function: Integrated
    • Manual: Available as a download
    • Simple Machine Networking: Suitable for use in control cabinets
    • Cost-effective Entry-level Solution: Affordable and space-saving control cabinet installation
    • Fast Commissioning: No configuration required
    • Easy On-site Diagnostics: LED indicators for troubleshooting
    • Uncrossed Connection Cables: Integrated autocrossover function for easy use
    • Network Expansion: Option for easy expansion and connection of remote stations
    • Power Supply: SITOP PSU100C 24 V/0.6 A
    • Connectors: RJ45
    • Signaling Contact: Terminal block
    • Cable Versions: Various options available with stripping tool
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE

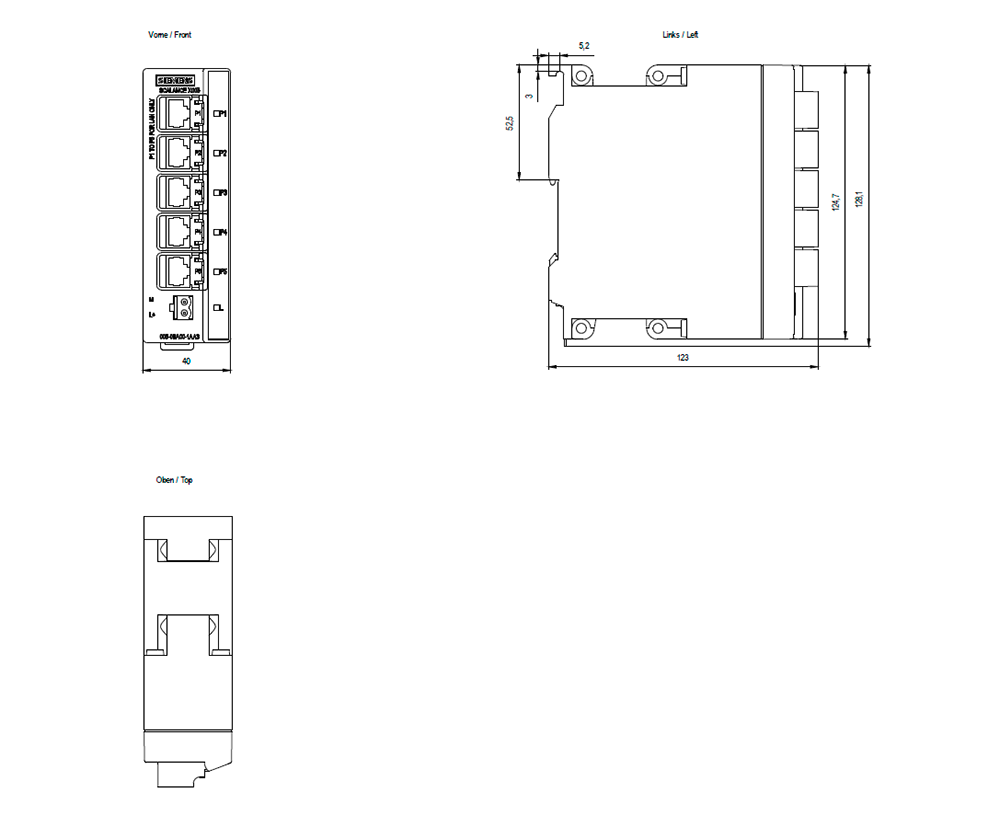

Depth124 mm
Layer 2true
Number of ports 1000 Mbps Mini GBIC0
Number of ports 1000 Mbps GBIC0
Number of ports 10/100 Mbps RJ455
Number of ports 100 Mbps POF0
Number of ports 1000 Mbps SC (LX)0
Number of ports 40 Gbps Mini GBIC0
Number of ports 100/1000 Mbps Mini GBIC0
Number of ports 10 Gbps RJ450
Number of ports 100 Gbps Mini GBIC0
Number of other ports0
Degree of protection (IP)IP30
Number of ports 1000 Mbps RJ450
Height125 mm
Manageablefalse
Number of combination-ports RJ45/Mini GBIC0
Number of module slots0
Width40 mm
Number of ports 100 Mbps SC0
Number of ports 10/100 Mbps M120
Number of ports 10/100/1000 Mbps RJ450
Number of max. stackable switches0
Number of ports 1000 Mbps SC (SX)0
Number of ports 10 Gbps Mini GBIC0
Ethernettrue
