Material ID: 6GK5101-1BB00-2AA3Product Description

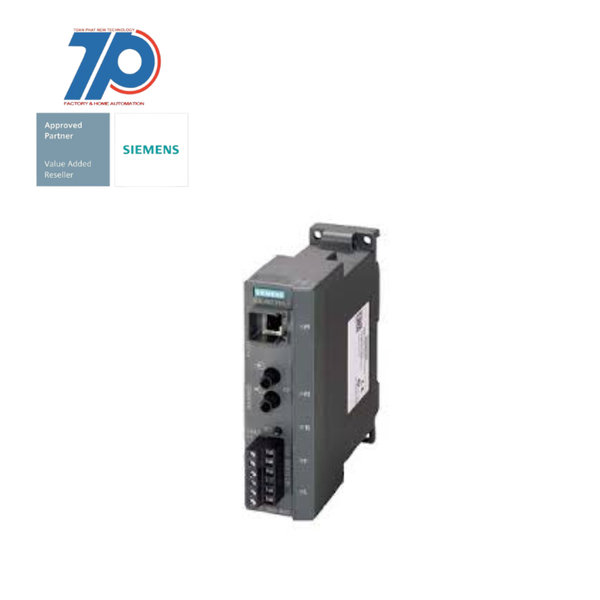

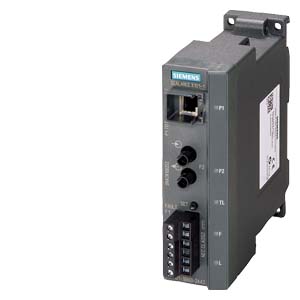

Spare Part - SCALANCE X101-1, IE Media Converter

Technical Features:

Commercial Benefits:

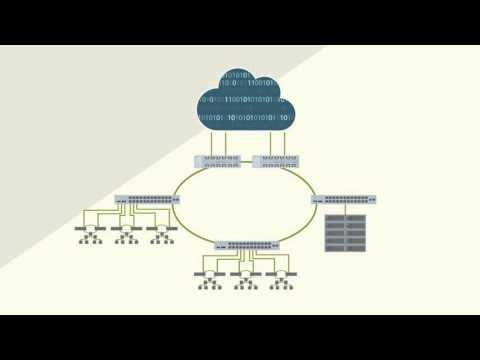

The SCALANCE X101-1, IE Media Converter is designed for use in the control cabinet for the implementation of fiber-optic on copper cables. It allows for linking single, remote terminal devices or network segments via the optical path of the media converters. With two media converters, integration of an optical path into a redundant ring is possible, as well as the installation of media converters in a standby link.

The industry-standard RJ45 port with additional retaining collar ensures a secure connection. The compact design in SIMATIC S7-300 format enables space-saving installation in the control cabinet. The quick mounting system of connectors and cables allows for wiring without a patch field. The SCALANCE X101-1, IE Media Converter ensures reliable operation, even in the event of a power supply failure, through redundant configuration.

    • 1x 10/100 Mbps RJ45 port
    • 1x 100 Mbps multimode BFOC
    • LED diagnostics
    • Error signaling contact with set pushbutton
    • Redundant power supply
    • PROFINET-compliant securing collars
    • Manual available as a download
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
Depth124 mm
Number of ports GIBC (SX)0
Supply voltage DC32 V
Number of ports 10 Mbps AUI0
Number of ports 100 Mbps SC0
Number of ports 10 Mbps VF-450
Number of ports 10 Gbps LC (SX)0
Number of ports 100 Mbps VF-450
Wall mounting/direct mountingtrue
Number of ports 1000 Mbps SC (LX)0
Number of ports 10 Mbps of ST0
Number of ports 100 Mbps ST1
Managedfalse
Number of ports 1000 Mbps LC (LX)0
Number of ports 10 Mbps MTRJ0
Number of ports 10 Mbps BNC0
Supply voltage DC18 V
Width40 mm
Fast Ethernettrue
Rail mounting possibletrue
Number of ports 100 Mbps RJ450
Number of ports 10/100 Mbps RJ451
Number of ports 1000 Mbps RJ450
Number of ports 10 Mbps of SC0
Number of ports 10 Gbps LC (LX)0
Number of ports Mini-GBIC (SX)0
Number of ports 1000 Mbps LC (SX)0
Number of ports 10 Gbps SC (SX)0
Number of ports Mini-GBIC (LX)0
Number of ports 1000 Mbps SC (SX)0
Number of ports GIBC (LX)0
Height125 mm
Voltage type (supply voltage)DC
Number of ports 10 Gbps SC (LX)0
Number of ports 10 Mbps RJ450
