Material ID: 6GK5101-1BC00-2AA3

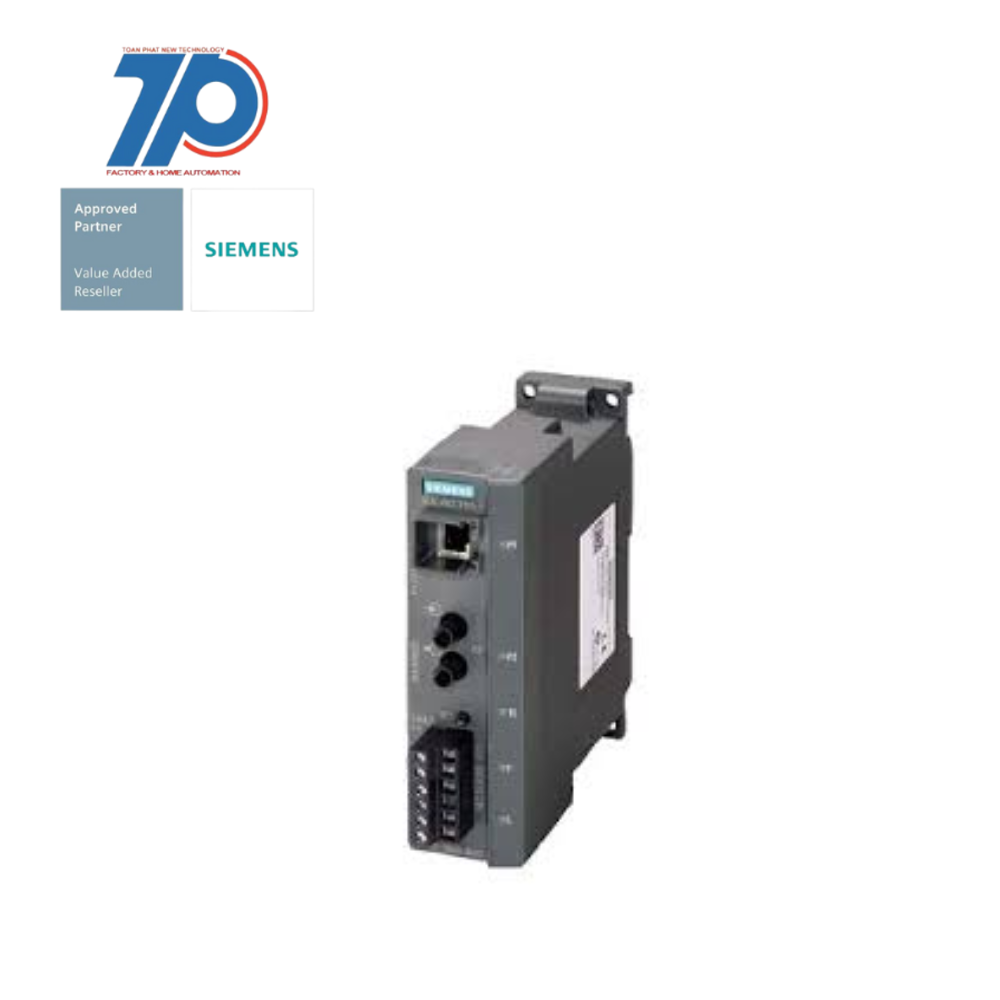

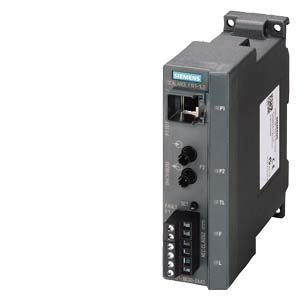

Spare Part - SCALANCE X101-1LD IE Media Converter

The SCALANCE X101-1LD IE media converter is an unmanaged device designed for use in control cabinets to implement fiber-optic on copper cables.

Technical Features:

Commercial Benefits:

    • 1x 10/100 Mbps RJ45 port
    • 1x 100 Mbps single-mode BFOC
    • LED diagnostics
    • Error signaling contact with set pushbutton
    • Redundant power supply
    • PROFINET-compliant securing collars
    • Manual available as a download
    • Link single remote terminal devices or network segments via the optical path of the media converter
    • Integrate an optical path into a redundant ring with two media converters
    • Install media converters in a standby link
    • Industry-standard RJ45 port with additional retaining collar
    • Space-saving installation in the control cabinet through compact design in SIMATIC S7-300 format
    • Wiring without a patch field is possible with a quick mounting system of connectors and cables
    • Reliable operation, even in the event of a power supply failure, through redundant configuration
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
Number of ports GIBC (SX)0
Number of ports 10 Mbps VF-450
Number of ports 10 Gbps SC (SX)0
Fast Ethernettrue
Number of ports 10 Mbps MTRJ0
Number of ports 1000 Mbps RJ450
Number of ports 1000 Mbps SC (LX)0
Number of ports 10 Mbps RJ450
Supply voltage DC32 V
Number of ports 1000 Mbps SC (SX)0
Supply voltage DC18 V
Number of ports 100 Mbps SC0
Number of ports Mini-GBIC (SX)0
Number of ports 10 Gbps LC (LX)0
Number of ports 100 Mbps VF-450
Rail mounting possibletrue
Number of ports 10 Mbps of SC0
Number of ports 1000 Mbps LC (SX)0
Number of ports 10 Gbps SC (LX)0

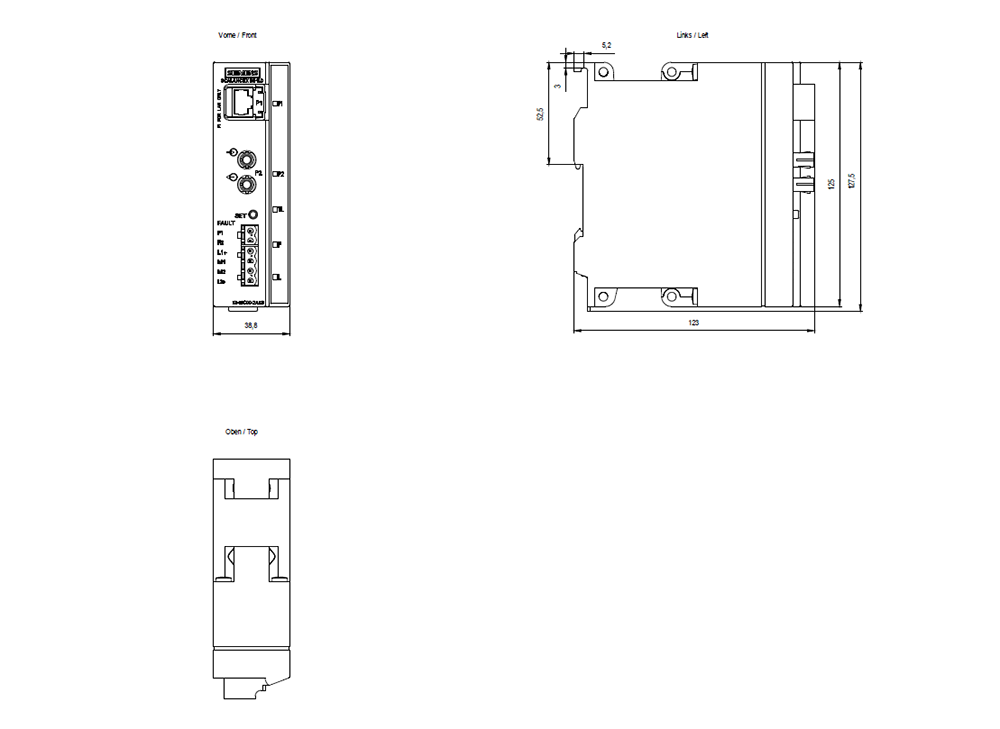

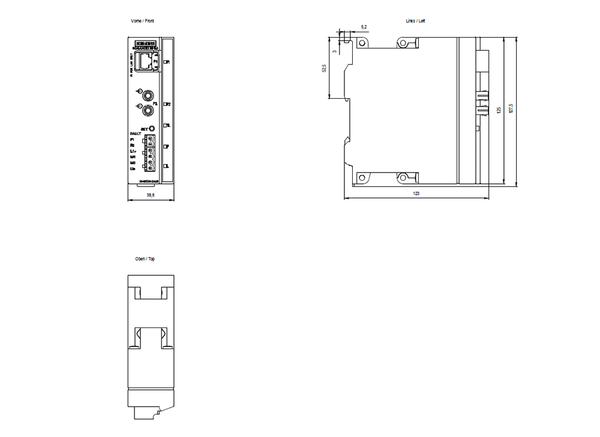

Height125 mm
Number of ports 10 Mbps BNC0
Wall mounting/direct mountingtrue
Number of ports 10 Mbps AUI0
Number of ports 10/100 Mbps RJ451
Number of ports 100 Mbps RJ450
Number of ports 100 Mbps ST1
Number of ports Mini-GBIC (LX)0
Number of ports GIBC (LX)0
Managedfalse
Number of ports 1000 Mbps LC (LX)0
Number of ports 10 Gbps LC (SX)0
Depth124 mm
Number of ports 10 Mbps of ST0
Voltage type (supply voltage)DC
Width40 mm
