Material ID: 6GK5108-0BA00-2AA3

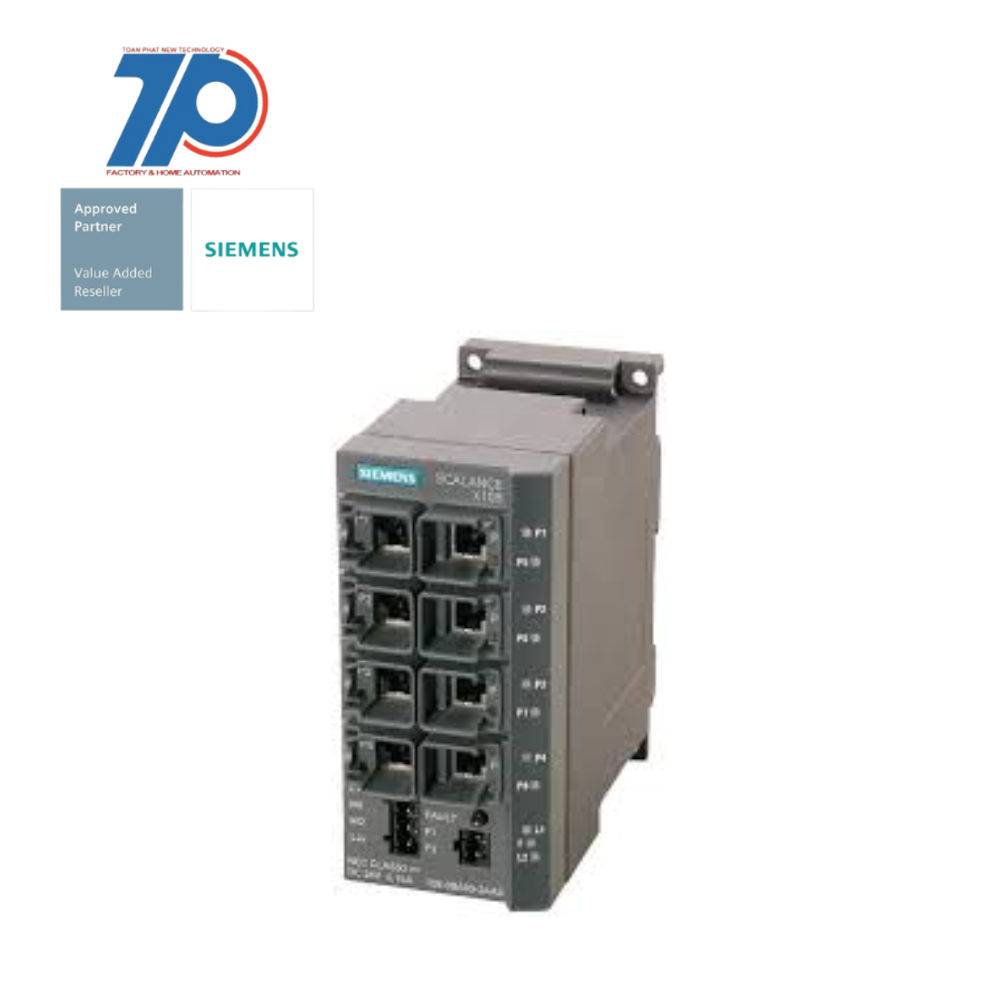

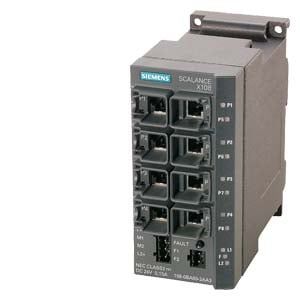

Spare Part - SCALANCE X108
The SCALANCE X108 is an unmanaged IE switch that offers reliable and fail-safe networking for simple machine installations. It features 8x 10/100 Mbps RJ45 ports with LED diagnostics and error-signaling contact with a set pushbutton.
Key Features:
Commercial Benefits:
Technical Specifications:
Accessories:
- Rugged metal enclosure in S7-300 format for space-saving control cabinet installation
- Integration into an automation solution with S7-300 components
- Redundant power supply for enhanced reliability
- Rugged station connections with PROFINET-compliant FastConnect connectors
- Additional strain and bending relief through latching into the enclosure
- Industry-standard RJ45 ports with securing collars
- Optimal for connecting the IE FC RJ45 plug 180
- Possible installation without a patch field using IE FC RJ45 plug 180 and IE FC standard cable
- Use of uncrossed connection cables through integrated autocrossover function of the ports
- FO connection in ST/BFOC version for remote stations
- Diagnostics on the device (power, link status, data traffic)
- Error signaling contact with easy adjustment using the SET button
- Compact and space-saving design
- Easy integration into existing automation solutions
- Enhanced reliability and fail-safe operation
- Efficient and secure station connections
- Flexible installation options
- Optimal connectivity with industry-standard RJ45 ports
- Simple and convenient diagnostics and error signaling
- Unmanaged compact switch
- 24 V DC power supply
- 8x 10/100 Mbps RJ45 ports
- SITOP PSU100C 24 V/0.6 A for stabilized power supply
- FC FO plugs and case for self-assembly of FO cables (ST/BFOC) for installation on site
- MM FO BFOC connector set
- RJ45 connectors
- Terminal block for signaling contact and power supply
- Mounting bracket
- Various FastConnect cable versions (including preassembled) with stripping tool
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Number of combination-ports RJ45/Mini GBIC | 0 |
| Number of ports 100 Mbps POF | 0 |
| Number of ports 1000 Mbps SC (SX) | 0 |
| Number of max. stackable switches | 0 |
| Height | 125 mm |
| Number of module slots | 0 |
| Manageable | false |
| Number of ports 40 Gbps Mini GBIC | 0 |
| Number of ports 10/100/1000 Mbps RJ45 | 0 |
| Number of ports 10/100 Mbps RJ45 | 8 |
| Number of ports 100 Gbps Mini GBIC | 0 |
| Degree of protection (IP) | IP30 |
| Number of ports 1000 Mbps RJ45 | 0 |
| Number of ports 10 Gbps RJ45 | 0 |
| Number of other ports | 0 |
| Number of ports 1000 Mbps Mini GBIC | 0 |
| Number of ports 1000 Mbps SC (LX) | 0 |
| Number of ports 100/1000 Mbps Mini GBIC | 0 |
| Ethernet | true |
| Width | 60 mm |
| Number of ports 100 Mbps SC | 0 |
| Depth | 124 mm |
| Number of ports 10/100 Mbps M12 | 0 |
| Layer 2 | true |
| Number of ports 1000 Mbps GBIC | 0 |
| Number of ports 10 Gbps Mini GBIC | 0 |
