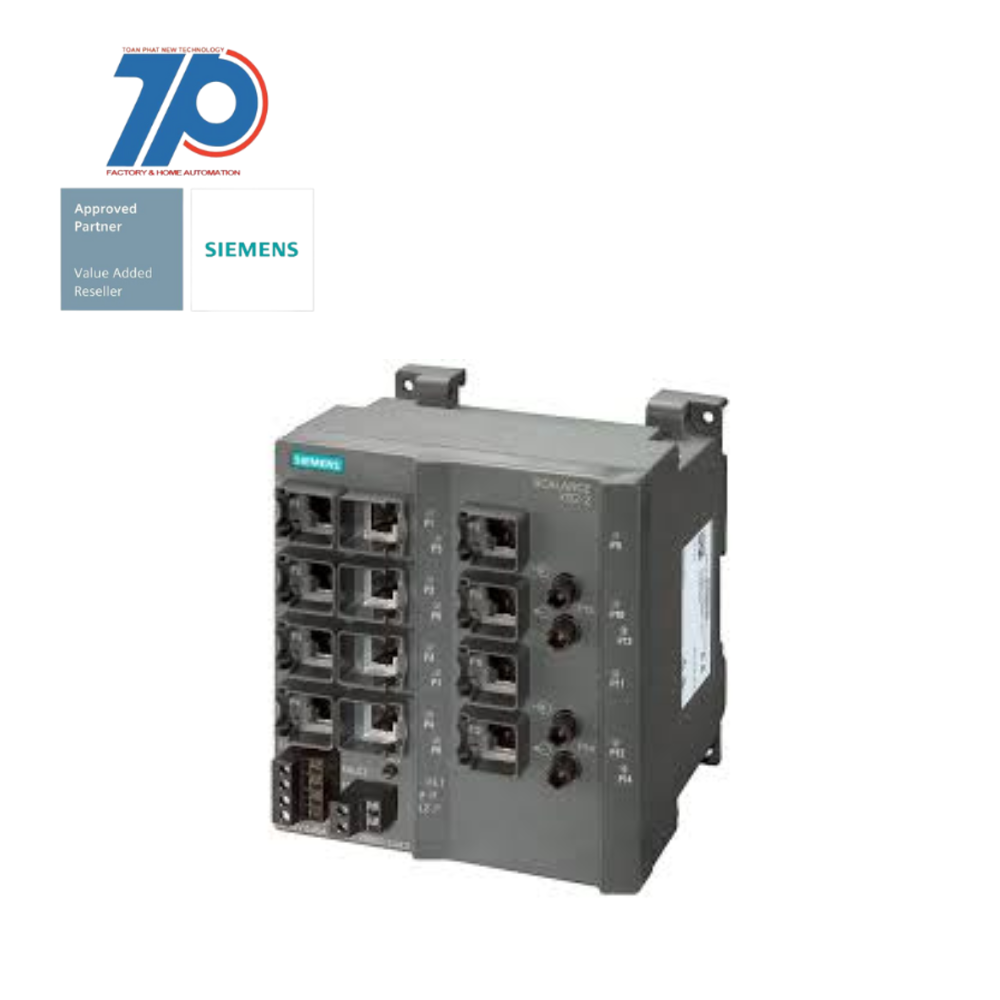

Material ID: 6GK5112-2BB00-2AA3Product Description

Spare Part - SCALANCE X112-2

Technical Features:

Commercial Benefits:

Accessories:

&DPMD_ACK236_001_000_1002400&&DPMD_ACK238_001_000_1002400&

    • Unmanaged IE switch
    • 12x 10/100 Mbps RJ45 ports
    • 2x 100 Mbps multimode BFOC
    • LED diagnostics
    • Error-signaling contact with set pushbutton
    • Redundant power supply
    • Manual available as a download
    • Compact switch for simple machine networking
    • Rugged metal enclosure in S7-300 format for space-saving control cabinet installation
    • Integration into an automation solution with S7-300 components
    • Particularly reliable and fail-safe through redundant power supply
    • Rugged station connections with PROFINET-compliant FastConnect connectors with additional strain and bending relief through latching into the enclosure
    • RJ45 ports designed to be industry-standard with additional securing collars; optimal for connecting the IE FC RJ45 plug 180
    • Possible installation without a patch field using IE FC RJ45 plug 180 and IE FC standard cable, and use of uncrossed connection cables through integrated autocrossover function of the ports
    • FO connection in ST/BFOC version for especially remote stations
    • Diagnostics on the device (power, link status, data traffic) and error signaling contact with easy adjustment using the SET button
    • Unmanaged compact switch, 24 V DC, 12x 10/100 Mbps RJ45 ports electrical, 2x 100 Mbps multimode ST/BFOC, max. 5 km
    • SITOP PSU100C 24 V/0.6 A for stabilized power supply
    • FC FO plugs and case for self-assembly of FO cables (ST/BFOC) for installation on site
    • MM FO BFOC connector set
    • RJ45 connectors
    • Terminal block for signaling contact and power supply
    • Mounting bracket
    • Various FastConnect cable versions (including preassembled) with stripping tool
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
Number of ports 100 Gbps Mini GBIC0
Number of ports 10 Gbps Mini GBIC0
Number of ports 100/1000 Mbps Mini GBIC0
Number of ports 1000 Mbps SC (LX)0
Number of ports 1000 Mbps GBIC0
Number of ports 40 Gbps Mini GBIC0
Number of ports 10/100 Mbps RJ4512
Number of ports 10 Gbps RJ450
Number of ports 1000 Mbps SC (SX)0
Number of max. stackable switches0
Number of ports 1000 Mbps Mini GBIC0
Number of module slots0
Manageablefalse
Number of ports 10/100 Mbps M120
Number of ports 10/100/1000 Mbps RJ450
Number of ports 100 Mbps ST2
Number of combination-ports RJ45/Mini GBIC0
Width120 mm
Number of ports 100 Mbps POF0
Degree of protection (IP)IP30
Layer 2true
Number of other ports2
Depth124 mm
Height125 mm
Number of ports 100 Mbps SC0
Number of ports 1000 Mbps RJ450
Ethernettrue
