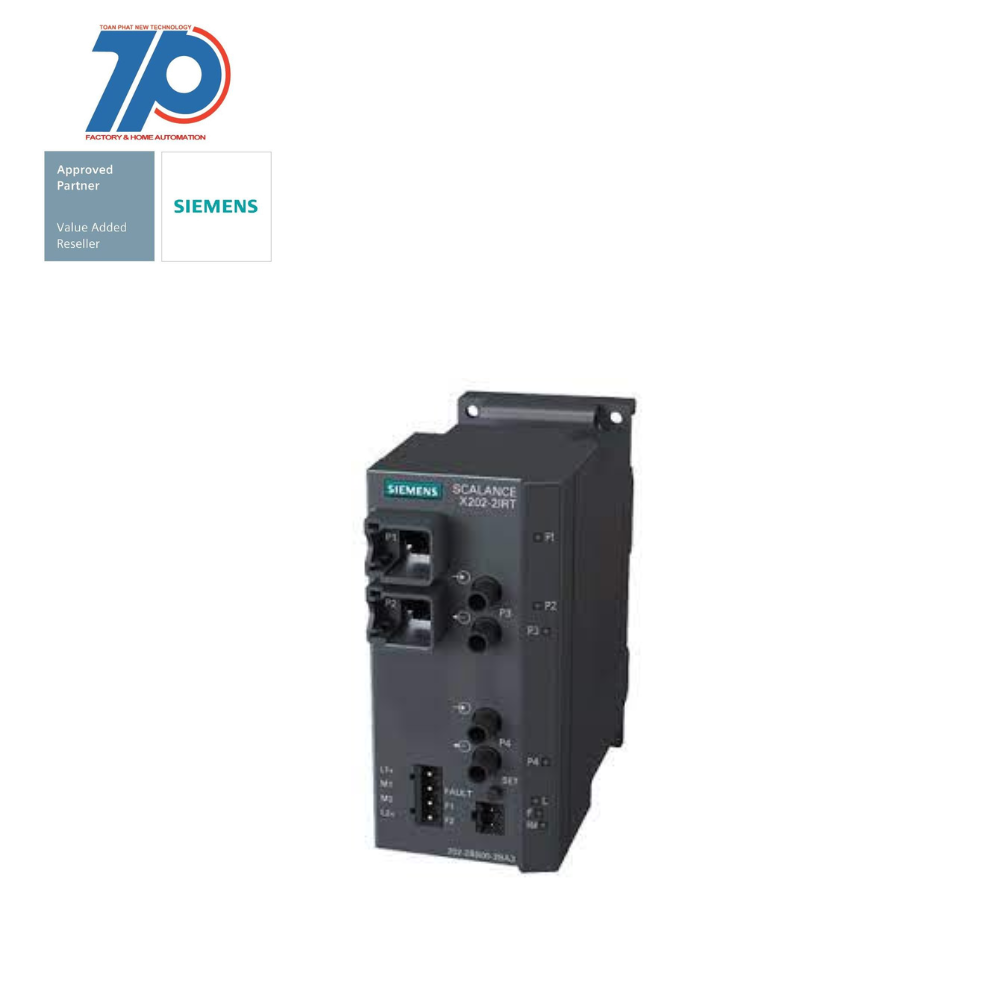

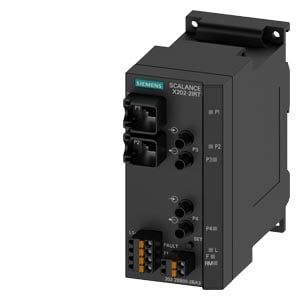

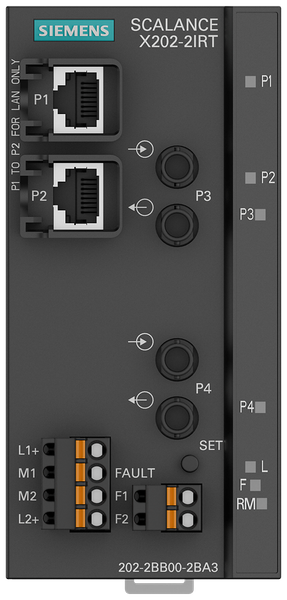

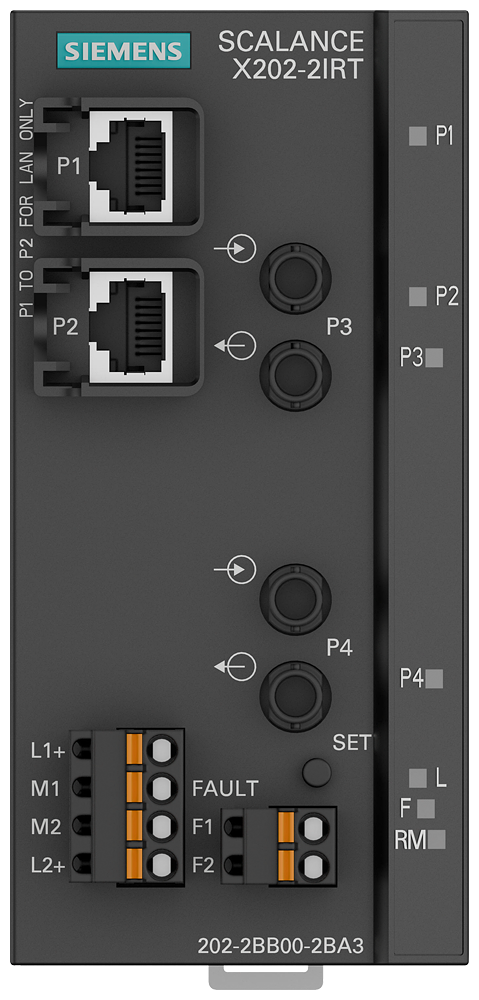

6GK5202-2BB00-2BA3

• SCALANCE X202-2IRT managed IE IRT switch
• 2x 10/100 Mbps RJ45 ports
• 2x 100 Mbps multimode BFOC
• Error signaling contact with set pushbutton
• Redundant power supply
• PROFINET IO device
• Network management
• Redundancy manager integrated
• Including electronic manual on CD-ROM
• C-PLUG optional
• Layer 2 compact switch
• For isochronous motion control applications
• Fast media redundancy
• Optimum performance through "cut through" and "store and forward" switching mechanisms
• High network availability in ring structures
• Smooth redundancy using the PROFINET-compliant MRPD method
• Secure data communication through rugged, industry-compatible device connection
• Configuration and diagnostics integrated into STEP 7
• Option of device replacement without the need for a programming device using the C-PLUG removable data storage medium
• Additional functions include PROFINET diagnostics, device diagnostics via LED, SNMP access, integrated Web server, automatic emailing function for remote diagnostics, and signaling via the network
• Managed, Layer 2 compact switch
• 24 V DC
• 2x 10/100 Mbps RJ45 ports electrical
• 2x 100 Mbps multimode BFOC
• PN IO device with IRT
• Extensive accessories available
