6GK5206-1BC10-2AA3

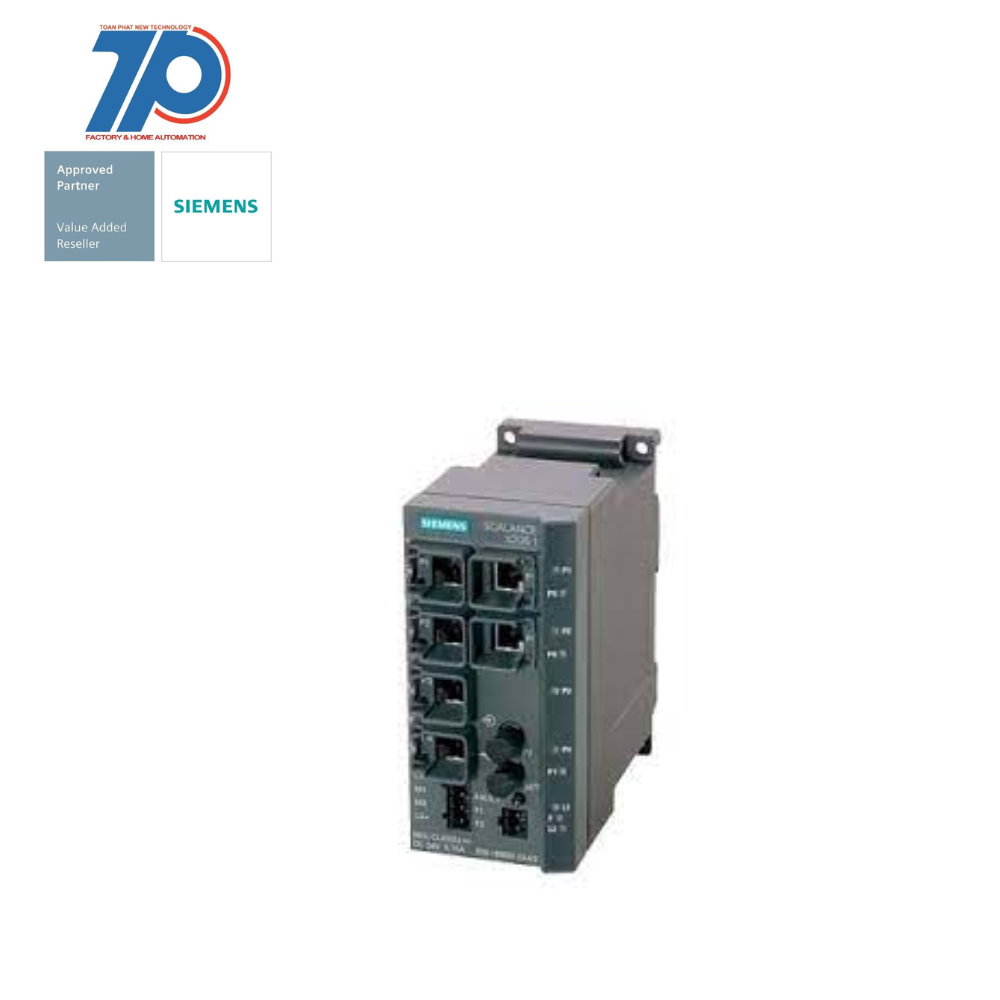

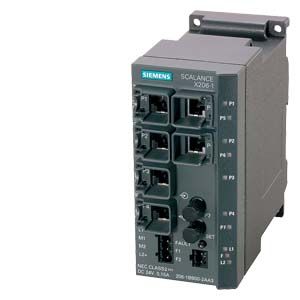

• SCALANCE X206-1LD, managed IE switch, 6x 10/100 Mbit/s RJ45 ports, 1x 100 Mbit/s single-mode BFOC
• Error signaling contact with set pushbutton
• Redundant power supply
• PROFINET IO device
• Network management
• Redundancy Manager integrated
• Incl. electron. manual on CD-ROM
• C-PLUG optional
• SCALANCE X206-1LD managed, Layer 2 compact switch, 6x 10/100 Mbps RJ45, 1x 100 Mbps single-mode ST/BFOC for Industrial Ethernet/PROFINET networks
• Rugged metal enclosure in S7-300 format for space-saving control cabinet installation
• Integration into an automation solution with very remote stations (up to 26 km)

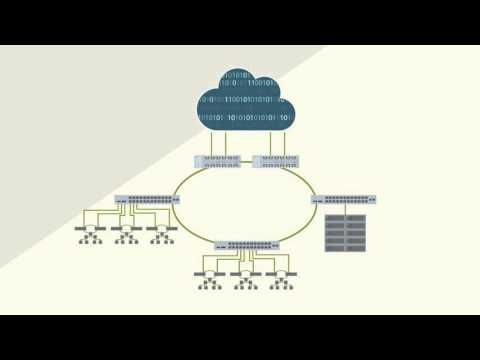

• High network availability through setup of redundant ring structures with fast media redundancy (integrated redundancy manager)
• Optimal integration in the process diagnostics and system diagnostics with PROFINET and integration into existing network management systems through standardized SNMP access
• Reliable plug-in connections through rugged, industry-standard device connection in conjunction with PROFINET-compliant FastConnect connectors as well as device replacement option by means of the C-PLUG
• Integrated configuration and diagnostics in the STEP 7 engineering tool and diagnostics on the device via LED
• Managed, Layer 2 compact switch, 24 V DC, 6x 10/100 Mbps RJ45 ports electrical, 1x 100 Mbps single-mode ST/BFOC, max. 26 km, PN IO device
• The system also features extensive accessories, such as the C-PLUG removable data storage medium, SITOP PSU100C 24 V/0.6 A for regulated power supply, terminal block for signaling contact, RJ45 connectors, case for self-assembly of FO cables (ST/BFOC), mounting bracket for mounting on S7-1500 mounting rail, stripping tool and various cable versions (including preassembled)
