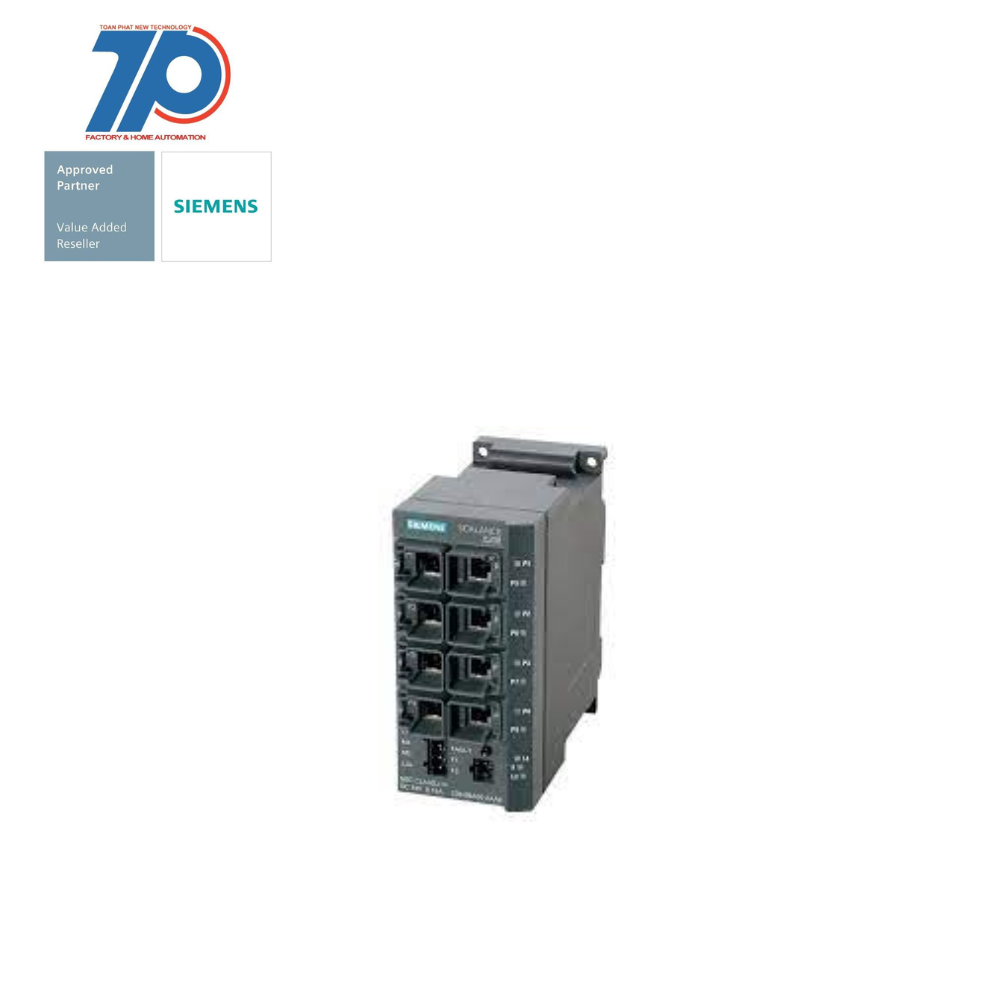

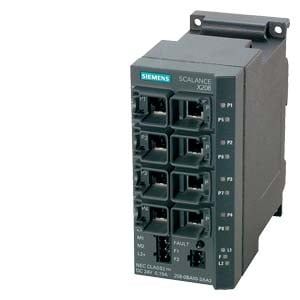

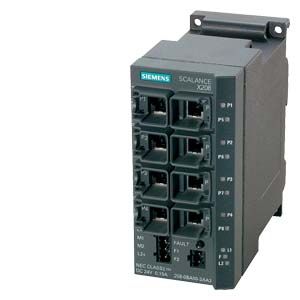

6GK5208-0BA10-2AA3

• SCALANCE X208, managed IE switch, 8x 10/100 Mbit/s RJ45 ports
• LED diagnostics, error-signaling contact with set pushbutton
• Redundant power supply
• PROFINET IO device, network management
• Redundancy manager integrated
• Incl. electron. manual on CD-ROM
• C-PLUG optional
• SCALANCE X208 managed, Layer 2 compact switch
• 8x 10/100 Mbps RJ45 for Industrial Ethernet/PROFINET networks
• Rugged metal enclosure in S7-300 format for space-saving control cabinet installation
• Integration into an automation solution with S7-300 components
• High network availability through setup of redundant ring structures with fast media redundancy (integrated redundancy manager)
• Optimal integration in the process diagnostics and system diagnostics with PROFINET
• Integration into existing network management systems through standardized SNMP access
• Reliable plug-in connections through rugged, industry-standard device connection in conjunction with PROFINET-compliant FastConnect connectors
• Device replacement option by means of the C-PLUG
• Integrated configuration and diagnostics in the STEP 7 engineering tool
• Diagnostics on the device via LED
• Managed, Layer 2 compact switch, 24 V DC
• 8x 10/100 Mbps RJ45 ports electrical, PN IO device
• Extensive accessories available
• C-PLUG removable data storage medium
• SITOP PSU100C 24 V/0.6 A for regulated power supply
• Terminal block for signaling contact
• RJ45 connectors
• Case for self-assembly of FO cables (ST/BFOC)
• Mounting bracket for mounting on S7-1500 mounting rail
• Stripping tool
• Various cable versions (including preassembled)
