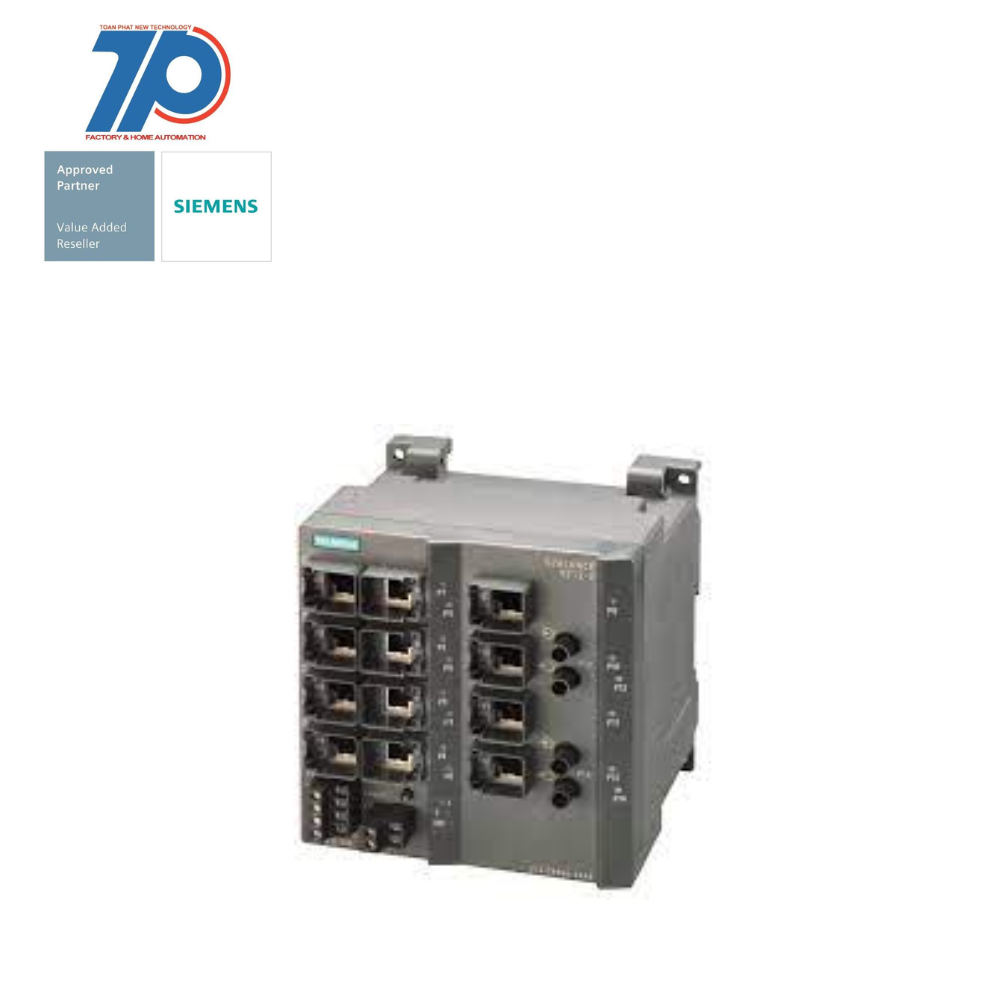

6GK5212-2BB00-2AA3

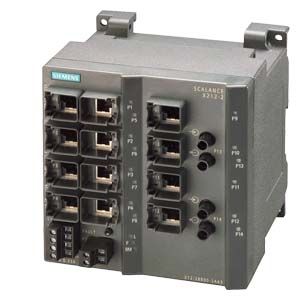

• SCALANCE X212-2, managed IE switch, 12x 10/100 Mbit/s RJ45 ports, 2x 100 Mbit/s multimode BFOC
• LED diagnostics, error-signaling contact with set pushbutton, redundant power supply
• PROFINET IO device, network management, redundancy manager integrated
• Incl. electron. manual on CD-ROM, C-PLUG optional
• SCALANCE X212-2 managed, Layer 2 compact switch, 12x 10/100 Mbps RJ45, 2x 100 Mbps multimode ST/BFOC for Industrial Ethernet/PROFINET networks

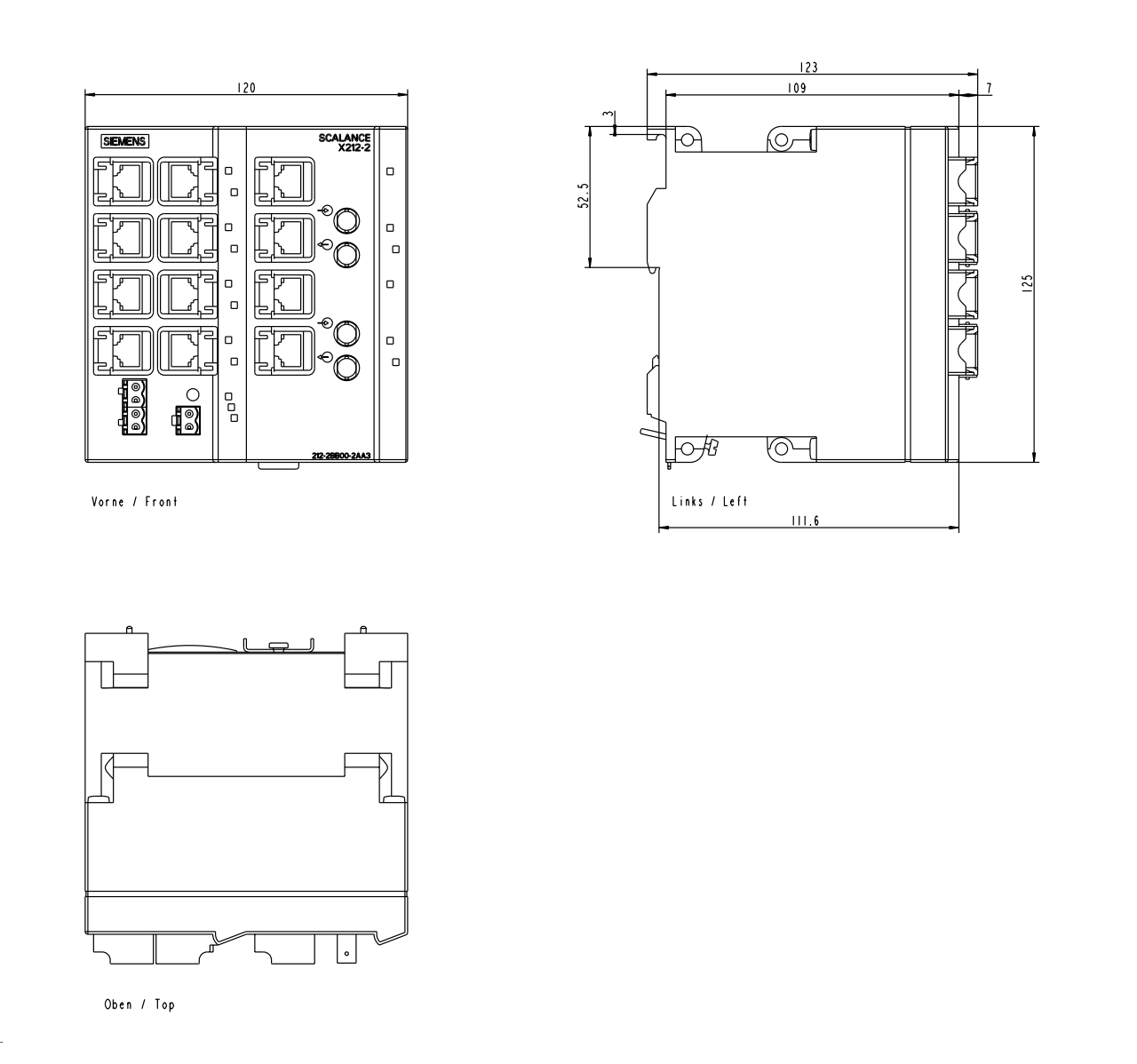

• Rugged metal enclosure in S7-300 format for space-saving control cabinet installation
• Integration into an automation solution with S7-300 components
• High network availability through setup of redundant ring structures with fast media redundancy (integrated redundancy manager)
• Optimal integration in the process diagnostics and system diagnostics with PROFINET and integration into existing network management systems through standardized SNMP access
• Reliable plug-in connections through rugged, industry-standard device connection in conjunction with PROFINET-compliant FastConnect connectors as well as device replacement option by means of the C-PLUG
• Integrated configuration and diagnostics in the STEP 7 engineering tool and diagnostics on the device via LED
• Managed, Layer 2 compact switch, 24 V DC, 12x 10/100 Mbps RJ45 ports electrical, 2x 100 Mbps multimode ST/BFOC, max. 5 km, PN IO device
• The system also features extensive accessories, such as the C-PLUG removable data storage medium, SITOP PSU100C 24 V/0.6 A for regulated power supply, terminal block for signaling contact, RJ45 connectors, case for self-assembly of FO cables (ST/BFOC), mounting bracket for mounting on S7-1500 mounting rail, stripping tool and various cable versions (including preassembled)
