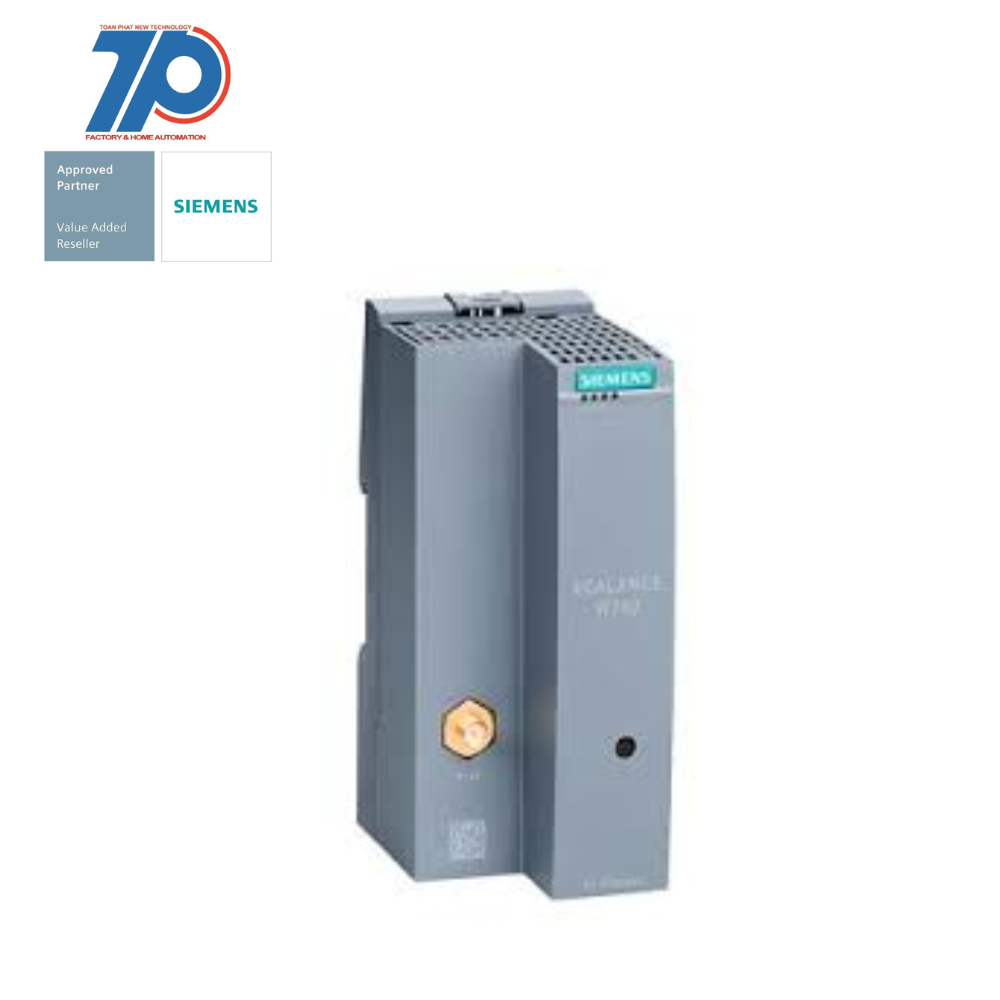

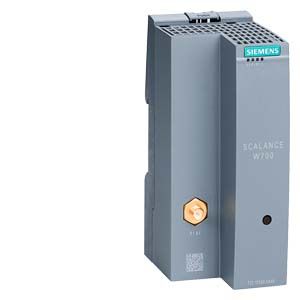

6GK5721-1FC00-0AA0

• IWLAN client, SCALANCE W721-1
• RJ45, 1 radio, 1 R-SMA antenna port
• IEEE 802.11a/b/g/h/n, 2.4/5GHz
• Gross data rate 150 Mbit/s
• 1x RJ45 max. 100 Mbit/s
• 24 V DC, joint block, IP20
• 0... +55 °C
• WPA2/802.11i/e, observe national approvals!
• CERT ID: ELN-W1-RJ-E1
• Scope of delivery: Manuals on CD-ROM, German/English, 1x joint block
• For operation outside of USA/Israel
• SCALANCE W721-1 RJ45 1x wireless, 1x R-SMA antenna port
• IEEE 802.11a/b/g/h/n, 2.4/5 GHz
• Gross data rate 150 Mbps
• 1x RJ45, max. 100 Mbps
• 24 V DC, terminal block, IP20
• For operation outside the US/Israel
• For integrating Industrial Ethernet stations into IWLANs for 2.4 GHz and 5 GHz
• 1 unit
• The devices are suitable for installation in the control cabinet as well as for indoor installation without control cabinets
• Integration of industrial components, plant units in WLAN infrastructures with data rates up to 150 Mbps
• Cost-effective replacement of cable lines, lightweight and compact design for efficient use in automatic guided vehicle systems (AGV)
• Space-saving installation in control cabinet thanks to SIMATIC design
• Can be mounted directly next to the SIMATIC ET 200SP
• Particularly future-proof through conformity with universally accepted WLAN standard IEEE 802.11
• Predictable data traffic (deterministic response) and defined response times on the wireless link as well as reliable wireless connection
• Furthermore, saving costs through usage of a single wireless network
• Additional characteristics are simple management via Web server and SNMP
• The comprehensive accessories include a wide antenna portfolio, plug-in connectors, stripping tools, mounting accessories as well as cabling technology that top off the system
