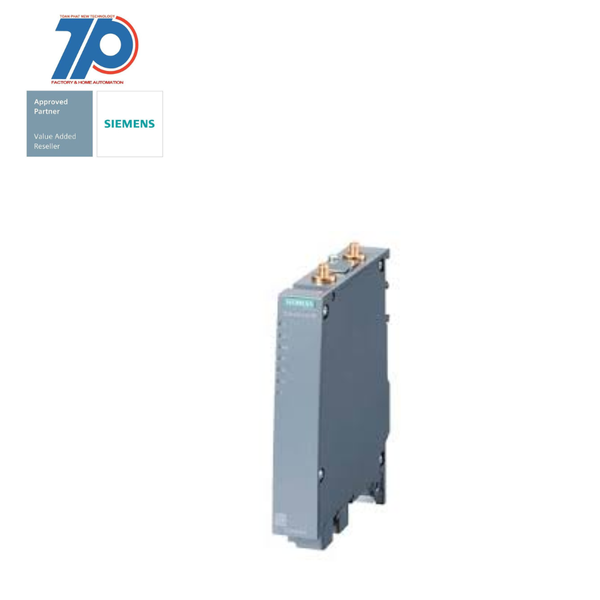

6GK5734-1FX00-0AB0

• IWLAN client, SCALANCE W734-1
• RJ45, 1 radio, 2 R-SMA antenna port
• iFeatures Support via KEY-PLUG
• IEEE 802.11a/b/g/h/n, 2.4/5 GHz
• Gross data rate 300 Mbps
• 2x RJ45 max. 100 Mbps
• PoE integrated 2-port switch
• Redundant 24 V DC, joint block
• IP30, -20... 60 °C
• Plug slot WPA2/802.11i/e
• Observe national approvals!
• CERT ID: MSN-W1-RJ-E2
• FCC ID: LYHMSN1V1
• Scope of delivery: manuals on CD-ROM, German/English, 1x joint block
• Only for operation in the USA
• SCALANCE W734-1 RJ45 (USA)
• 1x wireless, 2x R-SMA antenna port
• iFeatures support via KEY-PLUG
• IEEE 802.11a/b/g/h/n, 2.4/5 GHz
• Gross data rate 300 Mbps
• 2x RJ45 max. 100 Mbps
• PoE-integrated 2-port switch
• Redundant 24 V DC
• IP30, plug slot
• For operation in the US
• For managing wireless connection of up to eight connected devices with Industrial Ethernet connection
• 1 unit
• The devices are suitable for installation in the control cabinet as well as for indoor installation without control cabinets
• Predictable data traffic (deterministic response) and defined response times on the radio link through iFeatures
• Reliable radio connection through use of the MIMO technology and monitoring of the radio link
• PROFINET communication for real-time and redundancy requirements
• Option for transmission of safety-relevant data (safety) via PROFIsafe or CIP and other protocols
• Particularly future-proof through conformity with WLAN standard IEEE 802.11 accepted worldwide
• Investment protection through flexible feature extensions with KEY-PLUG
• Cost savings through use of a single wireless network
• Easy management via Web server and SNMP
• Fast device replacement in case of error through optional removable data storage medium C-PLUG
• Possibility to realize data-intensive applications, such as video streaming
• Compact and space-saving in the control cabinet because it can be mounted directly next to the SIMATIC S7-1500 or ET 200MP
• The comprehensive accessories include a wide antenna portfolio, plug-in connectors, stripping tools, mounting accessories as well as cabling technology that top off the system
