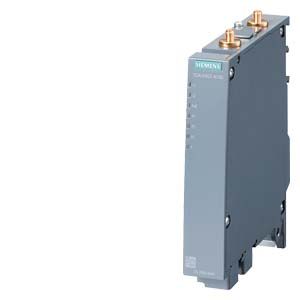

6GK5774-1FX00-0AC0

• IWLAN Access Point, SCALANCE W774-1 RJ45
• 1 radio
• 2 R-SMA antenna port
• iFeatures support via KEY-PLUG
• IEEE 802.11a/b/g/h/n
• 2.4/5GHz
• gross data rate 300 Mbit/s
• 2x RJ45 max. 100 Mbit/s
• PoE integrated 2-port switch
• redundant 24 V DC
• joint block
• IP30
• -20... 60 °C
• plug slot WPA2/802.11i/e
• observe national approvals!
• CERT ID: MSN-W1-RJ-E2
• scope of delivery: Manuals on CD-ROM, German/English
• 1x joint block; for operation in Israel
• SCALANCE W774-1 RJ45 (ISR)
• 1x wireless
• 2x R-SMA antenna port
• iFeatures support via KEY-PLUG
• IEEE 802.11a/b/g/h/n
• 2.4/5 GHz
• gross data rate 300 Mbps
• 2x RJ45 max. 100 Mbps
• PoE-integrated 2-port switch
• redundant 24 V DC
• terminal block
• IP30
• plug slot
• for operation in Israel
• Scalable Access Point with one built-in wireless interface for setting up wireless connections with iFeatures (iPCF/iPCF-MC) via removable data storage medium (plug)
• 1 unit
• The devices are suitable for installation in control cabinets in industrial plants, such as suspended monorails and automatic guided vehicle systems, and enable wireless commissioning in the plant
• Implementation of simple and cost-effective wireless machine networking
• Flat, compact aluminum housing, shock and vibration resistant, suitable for stringent mechanical requirements
• 2x2 MIMO technology for stable wireless connections, secure wireless communication via PROFINET with PROFIsafe up to 300 Mbps
• Wireless access for service and maintenance, cost-effective replacement of cable lines, light and small design for efficient usage in automatic guided vehicle systems (AGV)
• Space-saving installation thanks to SIMATIC design
• Optional activation of additional functions (iFeatures) via removable data storage medium (plug)
• The comprehensive accessories include a wide antenna portfolio, plug-in connectors, stripping tools, mounting accessories as well as cabling technology that top off the system
