Material ID: 6GK5788-1GD00-0AA0

Product Announced for Discontinuation

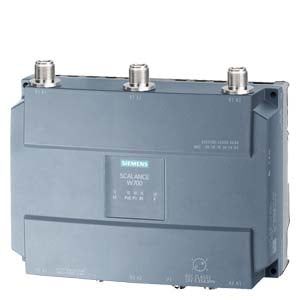

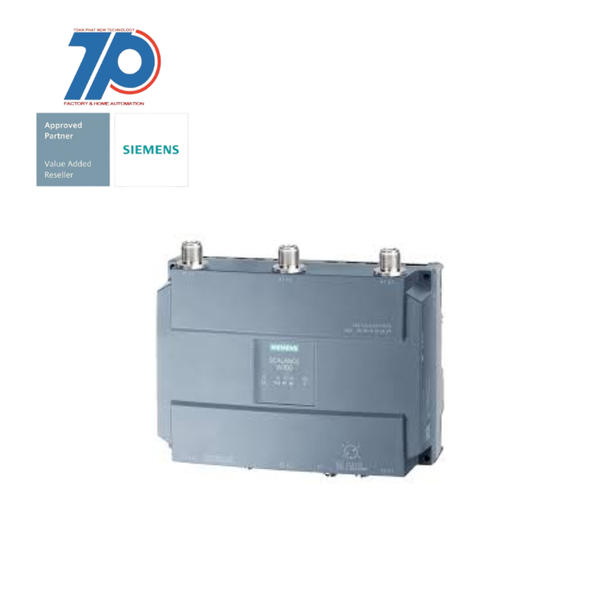

IWLAN Access Point, SCALANCE W788-1 M12

Includes:

Product Description:

SCALANCE W788-1 M12 is an IWLAN Access Point with one built-in wireless interface for setting up wireless connections. The device is designed for industrial applications indoors without control cabinets. The device has a rugged aluminum housing that is shock- and vibration-proof, meeting high mechanical requirements. With an IP65 degree of protection, it offers high protection against dust and water jets. The product is ideally suited for conditions with large temperature differences.

Technical Features:

Commercial Benefits:

    • 1 radio
    • 3 N-CON antenna port
    • iFeatures support via KEY-PLUG
    • IEEE 802.11a/b/g/h/n
    • 2.4/5GHz
    • gross 450 Mbps per radio
    • 1x M12 max. 1 Gbps
    • PoE
    • redundant 24 V DC
    • M12 A-coded IP65
    • -20..+60 °C
    • plug slot
    • WPA2/802.11i/e
    • observe national approvals! cert ID: RAPN-W1-M12-E3
    • MPCIE-R1-ABGN-U3
    • Scope of delivery: manuals on CD-ROM, German/English
    • M12 sealing caps
    • For operation outside of USA/Israel
    • 3x3 MIMO technology for stable wireless connections
    • Secure wireless communication via PROFINET with PROFIsafe up to 450 Mbps
    • Optional activation of additional functions (iFeatures) via removable data storage medium (plug)
    • Comprehensive accessories including a wide antenna portfolio, plug-in connectors, stripping tools, mounting accessories, and cabling technology
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
Ethernettrue
Frequency band2.4 GHz and 5 GHz
Number of ports 10/100/1000 Mbps LAN1
Repeater functiontrue
Degree of protection (IP)IP65
Number of users8
Max. data transmission rate450 Mbit/s
Managedtrue
Pole fasteningfalse
Bridge functiontrue
Flush-mounted installationfalse
Socket outlet adapterfalse
Suitable for wall mountingtrue
Built-infalse

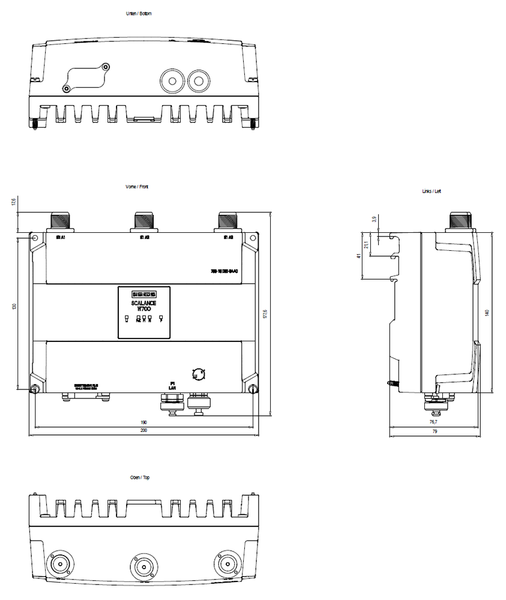

Height176 mm
Power over Ethernettrue
Width200 mm
Number of ports 10/100 Mbps LAN1
Depth79 mm
Suitable for 19 inch mountingfalse
