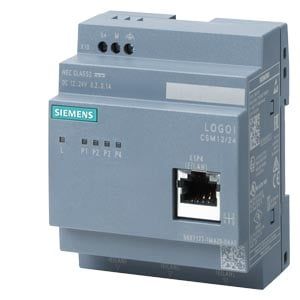

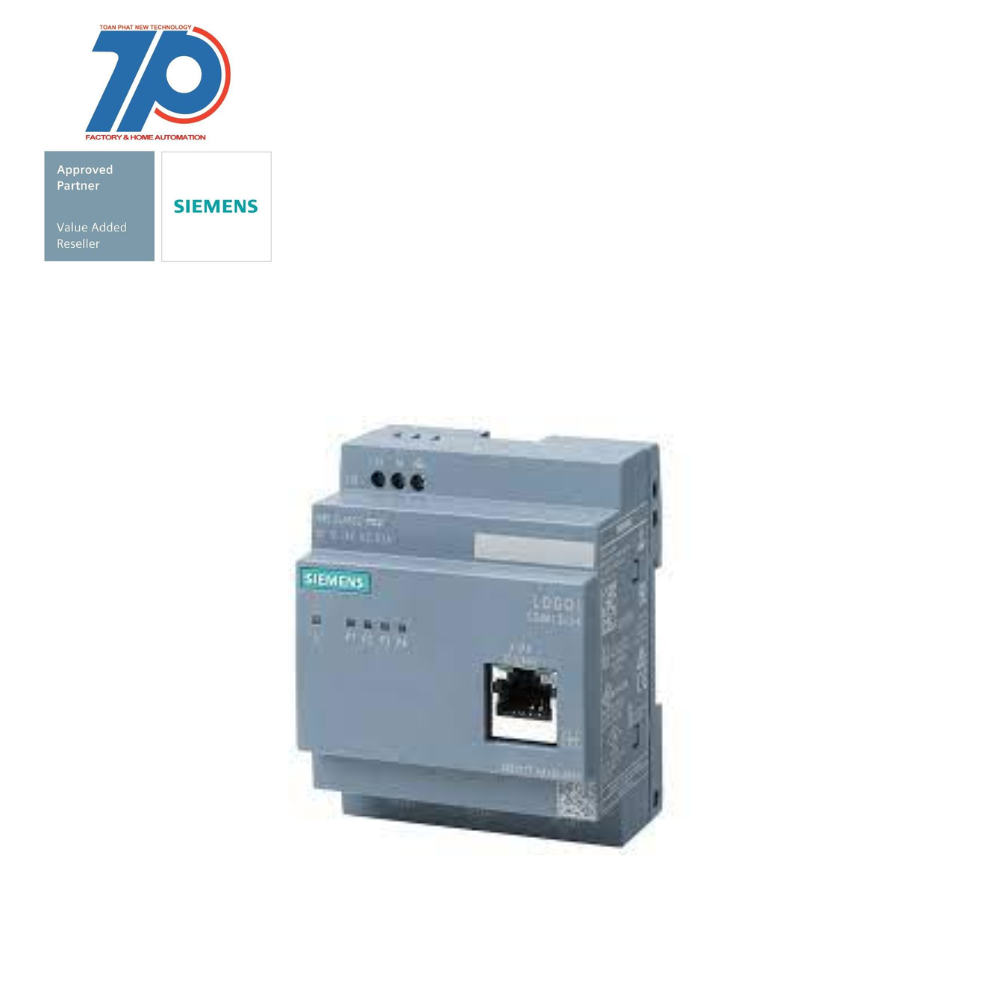

6GK7177-1MA20-0AA0

• LOGO! CSM12/24 Compact Switch Module connection of a LOGO! (. ..0BA7/...0BA8) and up to 3 further nodes to Ind. Ethernet with 10/100 Mbit/s Unmanaged switch, 4 RJ45 ports, 1x front port for diagnostics DC 12/24V power supply LED diagnostics, LOGO! setup.
• SCALANCE LOGO! CSM 12/24 Compact Switch Module, unmanaged switch, 4x 10/100 Mbps RJ45, 1x front port for connecting a LOGO! to IE
• Implementation of small, local Ethernet networks.
• Cost-effective design of small, local Industrial Ethernet networks - compared to the use of an external network component, the installation costs and space required are lower.
• Option of flexible expansion of the network by simply inserting the CSM.
• Fast commissioning, as no configuration is necessary, as well as fast and uncomplicated diagnostics access in the control cabinet.
• Support of stand-alone use as unmanaged 4-port switch for networking any Ethernet devices.
• LEDs for diagnostics and for status display of the Industrial Ethernet ports.
• Compact switch module for connecting a LOGO! and up to 3 further stations to Industrial Ethernet with 10/100 Mbps unmanaged switch, 4x RJ45 ports, 1x front port for diagnostics, 12/24 V DC.
• The system is supplemented by an IE FC Outlet RJ45 and various cable variants.
