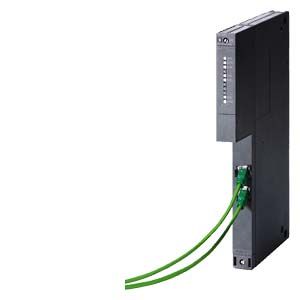

Material ID: 6GK7443-1EX20-0XE0
- Spare part
- Communications processor CP 443-1
- Connection of SIMATIC S7-400 to industrial Ethernet over ISO, TCP/IP, and UDP
- S7 communication
- Fetch/write
- SEND/RECEIVE with and without RFC1006 multicast
- PROFINET IO controller
- DHCP
- SNMP V2
- Web
- Diagnostics
- Initialization via LAN
- Access protection via IP access list
- Integrated real-time switch ERTEC 400
- 2xRJ45 connection for LAN with 10/100 Mbit/s
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Explosion safety category for gas | None |
| Appendant operation agent (Ex ib) | false |
| Explosion safety category for dust | None |
| Supporting protocol for Modbus | false |
| With potential separation | false |
| Supporting protocol for PROFINET CBA | false |
| Supporting protocol for ASI | false |
| Supporting protocol for CAN | false |
| Width | 25 mm |
| Type of data transmission | Other |
| Supporting protocol for PROFIBUS | false |
| Redundancy | false |
| Appendant operation agent (Ex ia) | false |
| Supporting protocol for PROFINET IO | true |
| Supporting protocol for Foundation Fieldbus | false |
| Supporting protocol for DeviceNet | false |
| Depth | 210 mm |
| Supporting protocol for other bus systems | true |
| IO link master | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Number of interfaces PROFINET | 2 |
| Radio standard Bluetooth | false |
| Supporting protocol for LON | false |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for SERCOS | false |
| Supporting protocol for DeviceNet Safety | false |
| Supporting protocol for EtherNet/IP | false |
| Supporting protocol for INTERBUS-Safety | false |
| Supporting protocol for PROFIsafe | true |
| Radio standard WLAN 802.11 | false |
| Suitable for safety functions | false |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for Data-Highway | false |
| Supporting protocol for KNX | false |
| Supporting protocol for SUCONET | false |
| Number of HW-interfaces industrial Ethernet | 2 |
| With optical interface | false |
| Height | 290 mm |
