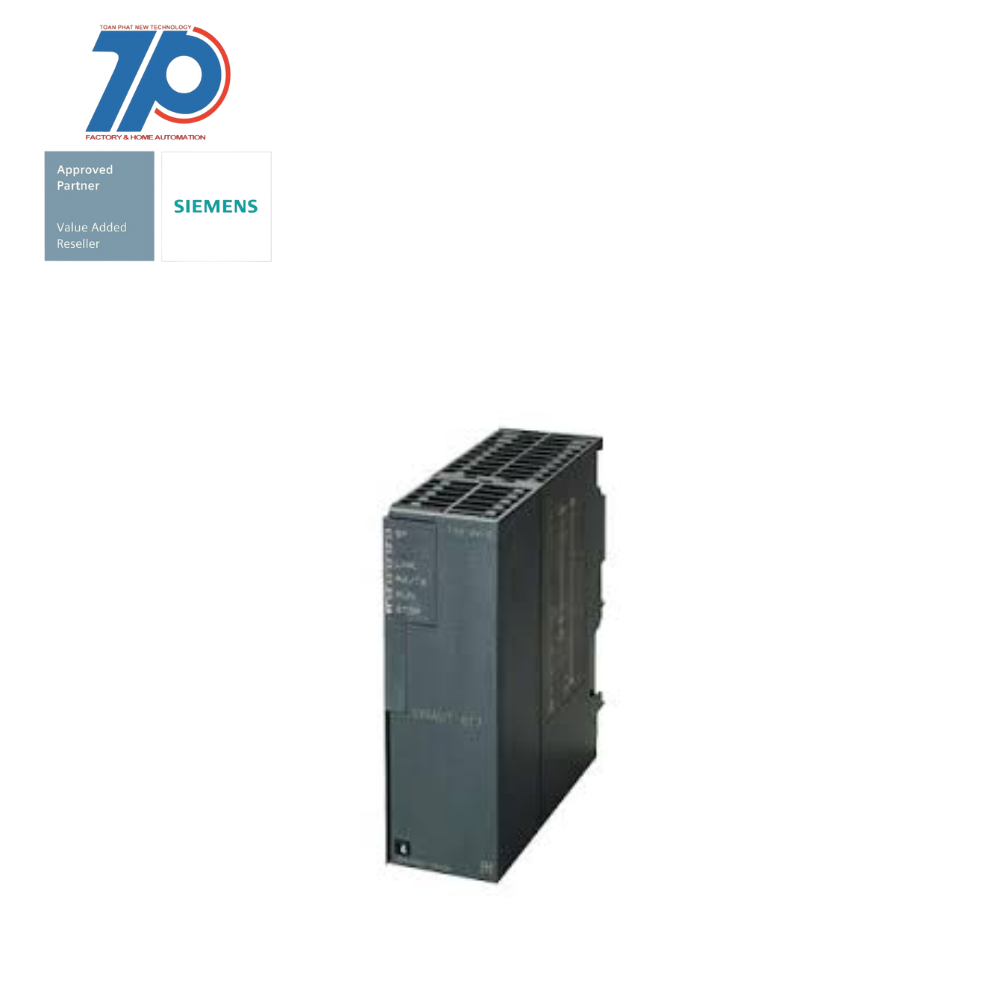

Material ID: 6NH7800-3BA00
- SINAUT ST7, TIM 3V-IE communications module for SIMATIC S7-300 with an RS232 interface for SINAUT communication via a classic WAN
- RJ45 interface for SINAUT communication via an IP-based network (WAN or LAN)
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| With optical interface | false |
| IO link master | false |
| Supporting protocol for SUCONET | false |
| Supporting protocol for PROFIBUS | false |
| Supporting protocol for Data-Highway | false |
| Number of HW-interfaces industrial Ethernet | 1 |
| Explosion safety category for dust | None |
| Supporting protocol for INTERBUS | false |
| With potential separation | false |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for ASI | false |
| Supporting protocol for INTERBUS-Safety | false |
| Width | 40 mm |
| Supporting protocol for LON | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for PROFINET CBA | false |
| Supporting protocol for PROFINET IO | false |
| Supporting protocol for CAN | false |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for Foundation Fieldbus | false |
| Supporting protocol for Modbus | false |
| Height | 125 mm |
| Appendant operation agent (Ex ib) | false |
| Supporting protocol for other bus systems | true |
| Redundancy | false |
| Type of data transmission | Other |
| Radio standard Bluetooth | false |
| Supporting protocol for DeviceNet Safety | false |
| Supporting protocol for PROFIsafe | false |
| Suitable for safety functions | false |
| Explosion safety category for gas | None |
| Supporting protocol for SERCOS | false |
| Supporting protocol for EtherNet/IP | false |
| Appendant operation agent (Ex ia) | false |
| Depth | 120 mm |
| Supporting protocol for KNX | false |
| Number of HW-interfaces RS-232 | 1 |
