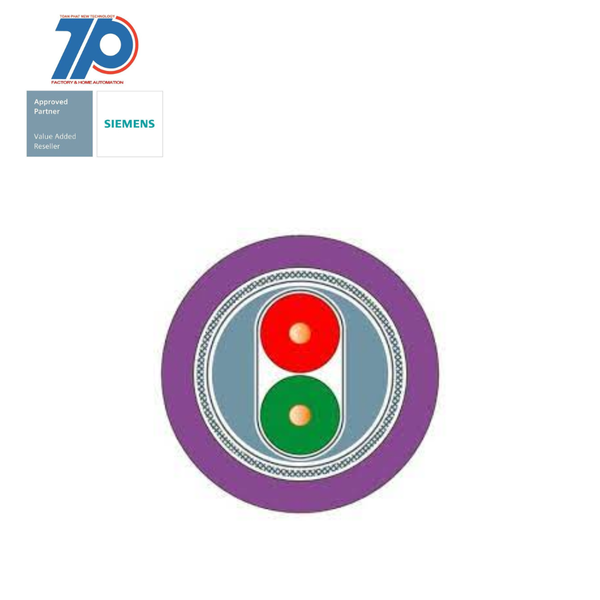

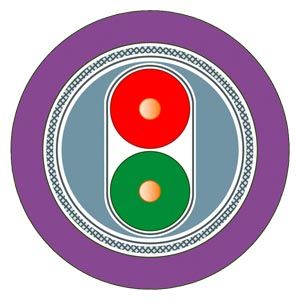

Material ID: 6XV1830-0ET20
- PROFIBUS FC Standard, bus cable 2-wire, shielded, special configuration for Quick assembly 200 m.
- SIMATIC NETCablesPROFIBUS FC Standard Cable GP
- Standard bus cable specially designed for fast installation.
- The double shield makes it especially suitable for routing through industrial areas with strong electromagnetic fields.
- Time is saved thanks to easy and quick on-site installation.
- Reliable shield contact and strain relief as well as efficient EMC shielding.
- Network is not sensitive to interferences due to shielded, twisted-pair cable.
- System-wide grounding concept can be implemented using the external shield of the bus cable and the grounding terminals on the bus terminal.
- Silicone-free, therefore suitable for use in the automotive industry (for example on paint lines).
- Easy length measurement thanks to printed meter marking.
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Screen over stranding | Foil + braiding |
| Reaction-to-fire according to EN 13501-6: Class | Eca |
| Category | Other |
| Conductor surface | Bare |
| Permitted cable outer temperature after assembling without vibration | -40 °C |
| Suitable for underground installation | false |
| Number of cores | 2 |
| Diameter conductor | 0.65 mm |
| Min. permitted bending radius, stationary application/permanent installation | 75 mm |
| Permitted cable outer temperature during assembling/handling | -40 °C |
| Outer diameter approx. | 8 mm |
| Permitted cable outer temperature during assembling/handling | 75 °C |
| Colour outer sheath | Purple |
| Screen over stranding element | None |
| Stranding element | Pairs |
| Permitted cable outer temperature after assembling without vibration | 75 °C |
| Core identification | Colour |
| Min. permitted bending radius, moving application with forced guidance | 75 mm |
| Number of stranding elements | 1 |
| Min. permitted bending radius, moving application/free movement | 75 mm |
