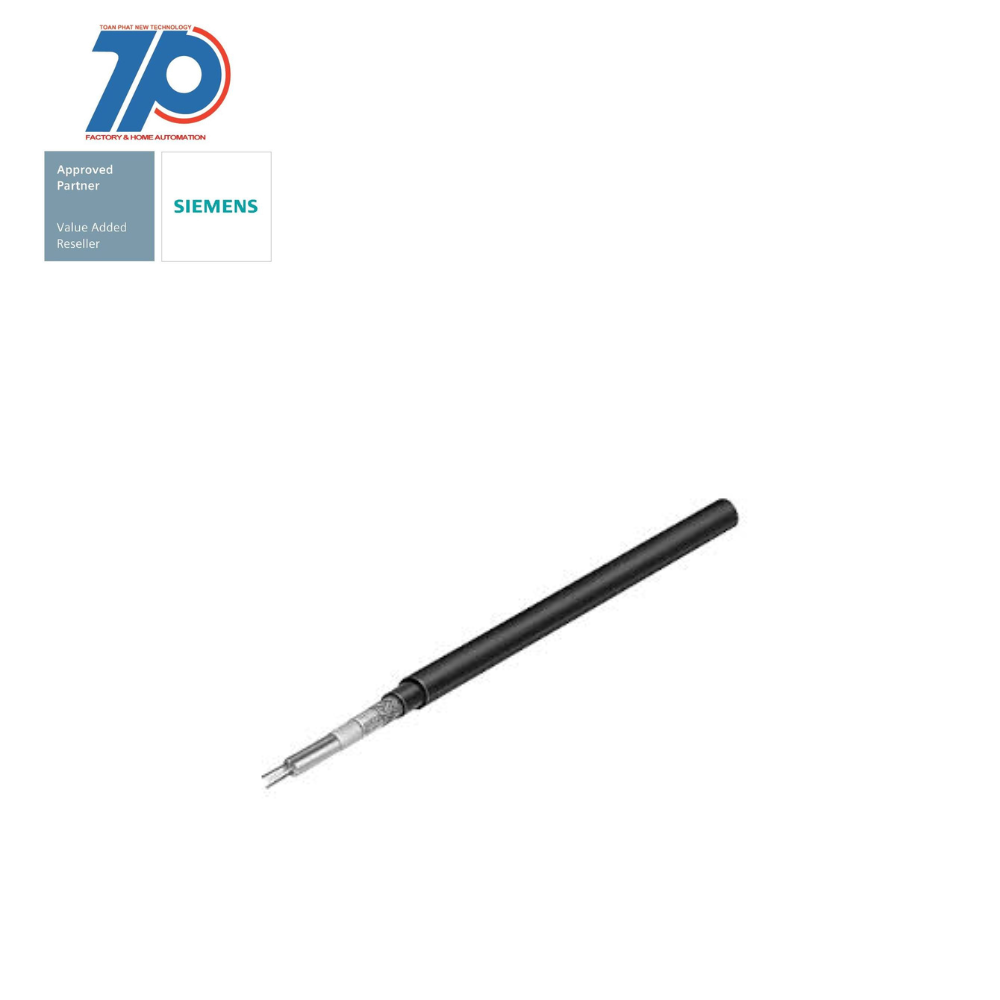

Material ID: 6XV1830-0MH10
- PROFIBUS marine cable SIENOPYR
- Copper cable for laying on ships and OFFSHORE units
- Sold by the meter
- Delivery unit max. 1000 m/ min. 20 m
- SIMATIC NETCablesSIENOPYR FR ship cable
- Halogen-free, impact-resistant, flame-retardant, marine-approved cable for permanent installation on ships and offshore platforms, both indoors and on open decks
- The cable is not suitable for permanent installation in water
- Reliable shield contact and strain relief as well as efficient EMC shielding
- Network is not sensitive to interferences due to shielded, twisted-pair cable
- System-wide grounding concept can be implemented using the external shield of the bus cable and the grounding terminals on the bus terminal
- Silicone-free, therefore suitable for use in the automotive industry (for example on paint lines)
- Easy length measurement thanks to printed meter marking
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Screen over stranding | Foil + braiding |
| Stranding element | Pairs |
| Core identification | Colour |
| Min. permitted bending radius, moving application with forced guidance | 196 mm |
| Permitted cable outer temperature after assembling without vibration | 80 °C |
| Min. permitted bending radius, moving application/free movement | 196 mm |
| Permitted cable outer temperature after assembling without vibration | -35 °C |
| Number of cores | 2 |
| Min. permitted bending radius, stationary application/permanent installation | 196 mm |
| Screen over stranding element | None |
| Permitted cable outer temperature during assembling/handling | 80 °C |
| Number of stranding elements | 1 |
| Diameter conductor | 0.67 mm |
| Outer diameter approx. | 9.799999999 mm |
| Conductor surface | Bare |
| Category | Other |
| Colour outer sheath | Black |
| Permitted cable outer temperature during assembling/handling | -35 °C |
| Suitable for underground installation | false |
