6XV1830-0PH10
1₫
(Giá đã bao gồm VAT)
Cam kết bán hàng
-
Sản phẩm chính hãng
-
Bảo hành có cam kết
-
Đầy đủ phụ kiện từ nhà sản xuất
-
Giao hàng nhanh chóng (tuỳ khu vực)
Material ID: 6XV1830-0PH10

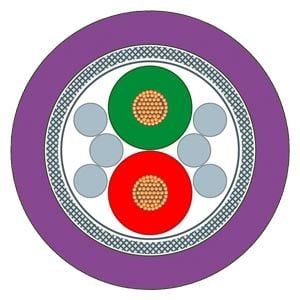

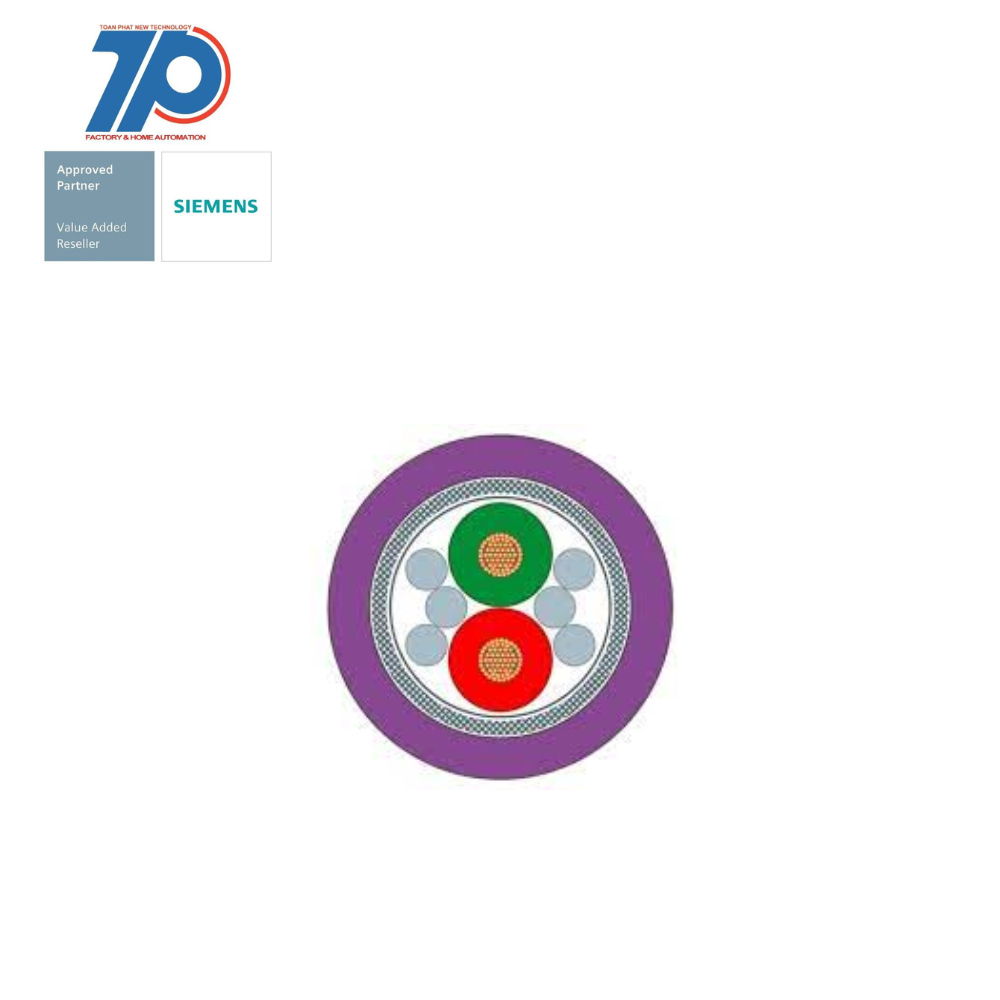

- PROFIBUS torsion cable, for use in highly flexible applications (torsion)
- Delivery unit: max. 1000 m, minimum order quantity 20 m, sold by the meter
- SIMATIC NET Cables
- PROFIBUS Torsion Cable
- Highly flexible bus cable for use in moving machine parts (torsion)
- Reliable shield contact and strain relief as well as efficient EMC shielding
- Network is not sensitive to interferences due to shielded, twisted-pair cable
- System-wide grounding concept can be implemented using the external shield of the bus cable and the grounding terminals on the bus terminal
- Silicone-free, therefore suitable for use in the automotive industry (for example on paint lines)
- Easy length measurement thanks to printed meter marking
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Permitted cable outer temperature during assembling/handling | -40 °C |
| Number of cores | 2 |
| Core identification | Colour |
| Number of stranding elements | 1 |
| Screen over stranding element | None |
| Reaction-to-fire according to EN 13501-6: Class | Eca |
| Permitted cable outer temperature after assembling without vibration | -25 °C |
| Stranding element | Pairs |
| Suitable for underground installation | false |
| Category | Other |
| Conductor surface | Bare |
| Permitted cable outer temperature during assembling/handling | 75 °C |
| Colour outer sheath | Purple |
| Outer diameter approx. | 8 mm |
| Screen over stranding | Foil + braiding |
| Diameter conductor | 0.8 mm |
| Permitted cable outer temperature after assembling without vibration | 75 °C |
