6XV1830-1CH15
1₫
(Giá đã bao gồm VAT)
Cam kết bán hàng
-
Sản phẩm chính hãng
-
Bảo hành có cam kết
-
Đầy đủ phụ kiện từ nhà sản xuất
-
Giao hàng nhanh chóng (tuỳ khu vực)
Material ID: 6XV1830-1CH15

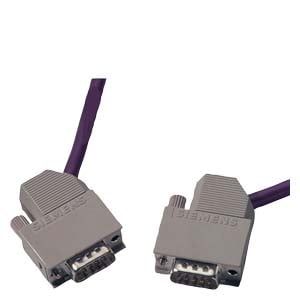

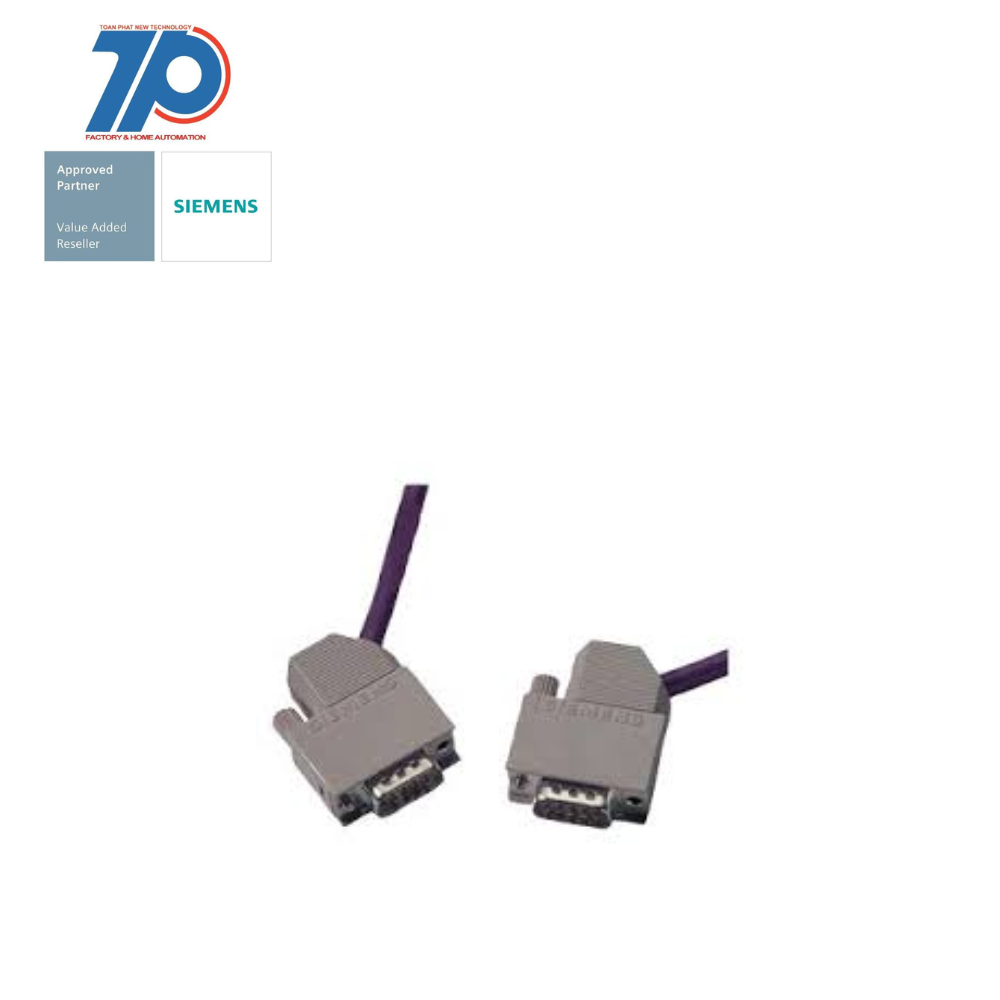

- Plug-in cable 830-1T for PROFIBUS for connection of terminal devices to OLM and OBT
- Already pre-assembled with 2 D-sub connectors, 9-pole, cable terminated on both ends, 1.5 m
- SIMATIC NETCablesCable 830-1T
- Pre-assembled cable for fast and cost-effective connection of PROFIBUS stations to optical link modules or optical bus terminals
- Fault-free connection of terminal stations by means of pre-assembled connecting cables
- Secure data transmission to the terminal station in environments subject to high levels of EMC through direct cable shielding and termination
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Diameter conductor | 0.61 mm |
| Conductor surface | Bare |
| Permitted cable outer temperature during assembling/handling | 70 °C |
| Min. permitted bending radius, moving application/free movement | 86 mm |
| Core identification | Colour |
| Permitted cable outer temperature during assembling/handling | -40 °C |
| Screen over stranding | Foil + braiding |
| Stranding element | Pairs |
| Permitted cable outer temperature after assembling without vibration | 70 °C |
| Min. permitted bending radius, moving application with forced guidance | 86 mm |
| Colour outer sheath | Purple |
| Number of stranding elements | 1 |
| Screen over stranding element | None |
| Category | Other |
| Outer diameter approx. | 5.7 mm |
| Suitable for underground installation | false |
| Min. permitted bending radius, stationary application/permanent installation | 86 mm |
| Permitted cable outer temperature after assembling without vibration | -40 °C |
| Number of cores | 2 |
