Material ID: 6XV1830-2AH30

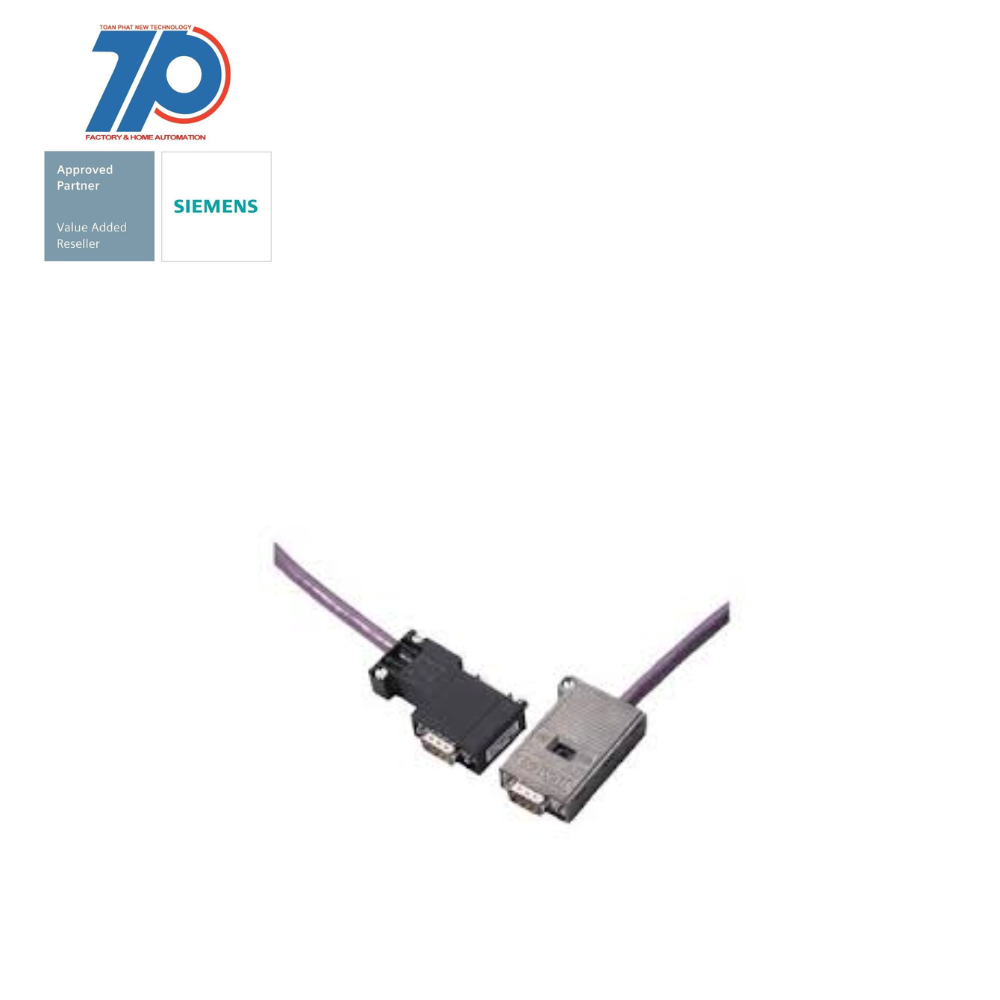

- Plug-in cable 830-2 for PROFIBUS
- Pre-assembled cable with two D-sub connectors 9-pole
- Terminating resistors connectable
- 3 m SIMATIC NETCablesPROFIBUS Cable 830-2
- Pre-assembled cable for connecting PROFIBUS stations, for example HMI, to automation devices
- Fault-free connection of terminal stations by means of pre-assembled connecting cables
- Direct connection of a PG via the PG interface without interrupting the connection between stations
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Category | Other |
| Number of stranding elements | 1 |
| Diameter conductor | 0.65 mm |
| Screen over stranding element | None |
| Stranding element | Pairs |
| Suitable for underground installation | false |
| Screen over stranding | Foil + braiding |
| Core identification | Colour |
| Conductor surface | Bare |
| Min. permitted bending radius, stationary application/permanent installation | 75 mm |
| Number of cores | 2 |
| Min. permitted bending radius, moving application with forced guidance | 75 mm |
| Min. permitted bending radius, moving application/free movement | 75 mm |
