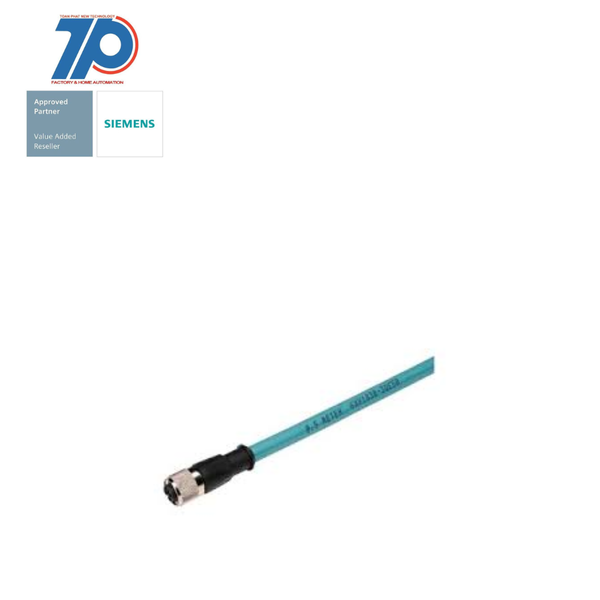

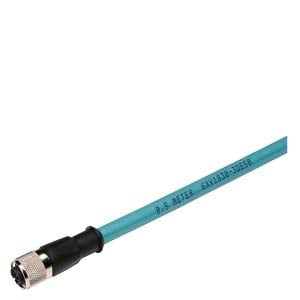

Material ID: 6XV1830-3DH20
- PROFIBUS M12 plug-in cable (ET 200)
- Pre-assembled PB FC Trailing Cable with 2 M12 connectors, B-coded, 5-pole; 2.0 m
- SIMATIC NETCablesPROFIBUS M12-Cable
- Pre-assembled, flexible plug-in cable for connecting PROFIBUS stations (e.g. SIMATIC ET 200) in IP65 degree of protection
- For transmission rates up to 12 Mbps
- Time-saving and fault-free connection of terminal stations by means of pre-assembled connecting cables
- Easy assembly on-site for application-specific M12 plug-in cables by means of M12 plug-in connectors for field assembly, designed for quick mounting system
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Permitted cable outer temperature during assembling/handling | 60 °C |
| Screen over stranding | Foil + braiding |
| Screen over stranding element | None |
| Suitable for underground installation | false |
| Number of stranding elements | 1 |
| Number of cores | 2 |
| Core identification | Colour |
| Diameter conductor | 0.67 mm |
| Permitted cable outer temperature after assembling without vibration | 60 °C |
| Outer diameter approx. | 8 mm |
| Stranding element | Pairs |
| Permitted cable outer temperature during assembling/handling | -40 °C |
| Permitted cable outer temperature after assembling without vibration | -40 °C |
| Conductor surface | Bare |
| Category | Other |
