6XV1830-3EH10

• PROFIBUS FC Trailing Cable
• PROFIBUS trailing cable
• Max. acceleration 4 m/QS
• Min. 3 million bending cycles
• Min. bending radius approx. 120 mm

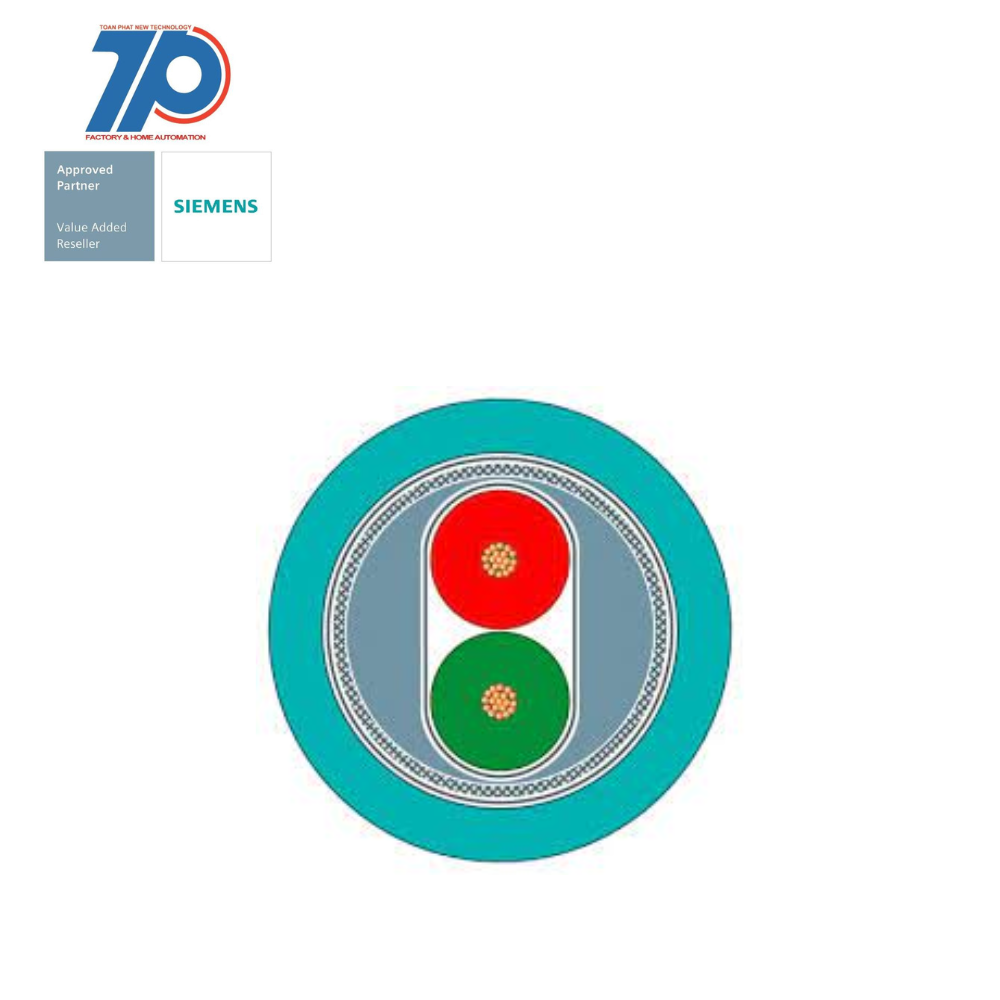

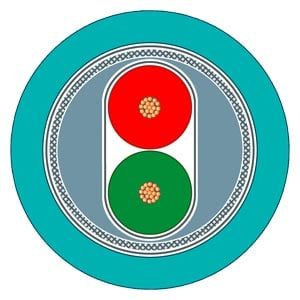

• 2-wire shielded, sold by the meter
• Delivery unit max. 1000 m
• Minimum order quantity 20 m
• SIMATIC NET Cables
• PROFIBUS FC Trailing Cable
• Highly flexible bus cable specially designed for fast installation
• For use in continuous motion in a trailing cable
• Time is saved thanks to easy and quick on-site installation
• Reliable shield contact and strain relief
• Efficient EMC shielding
• Network is not sensitive to interferences due to shielded, twisted-pair cable
• System-wide grounding concept can be implemented using the external shield of the bus cable and the grounding terminals on the bus terminal
• Silicone-free, therefore suitable for use in the automotive industry (for example on paint lines)
• Easy length measurement thanks to printed meter marking
