Material ID: 6XV1830-3GH10

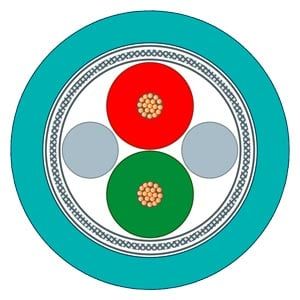

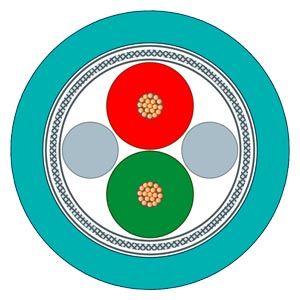

- PROFIBUS FESTOON Cable GP for festoon suspension, 2-core shielded
- Max. acceleration: 4 m/QS
- Min. 5 million bending cycles
- Sold by the meter
- Delivery unit: max. 1000 m
- Minimum order quantity: 20 m
- SIMATIC NET Cables PROFIBUS Festoon Cable GP
- Flexible bus cable for use in continuous motion in a trailing cable, festoon mounting
- Time is saved thanks to easy and quick on-site installation
- Reliable shield contact and strain relief as well as efficient EMC shielding
- Network is not sensitive to interferences due to shielded, twisted-pair cable
- System-wide grounding concept can be implemented using the external shield of the bus cable and the grounding terminals on the bus terminal
- Silicone-free, therefore suitable for use in the automotive industry (for example on paint lines)
- Easy length measurement thanks to printed meter marking
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Permitted cable outer temperature after assembling without vibration | -40 °C |
| Stranding element | Pairs |
| Permitted cable outer temperature after assembling without vibration | 80 °C |
| Outer diameter approx. | 8 mm |
| Conductor surface | Bare |
| Core identification | Colour |
| Diameter conductor | 0.67 mm |
| Permitted cable outer temperature during assembling/handling | -40 °C |
| Screen over stranding | Foil + braiding |
| Number of cores | 2 |
| Category | Other |
| Screen over stranding element | None |
| Number of stranding elements | 1 |
| Permitted cable outer temperature during assembling/handling | 80 °C |
| Reaction-to-fire according to EN 13501-6: Class | Eca |
