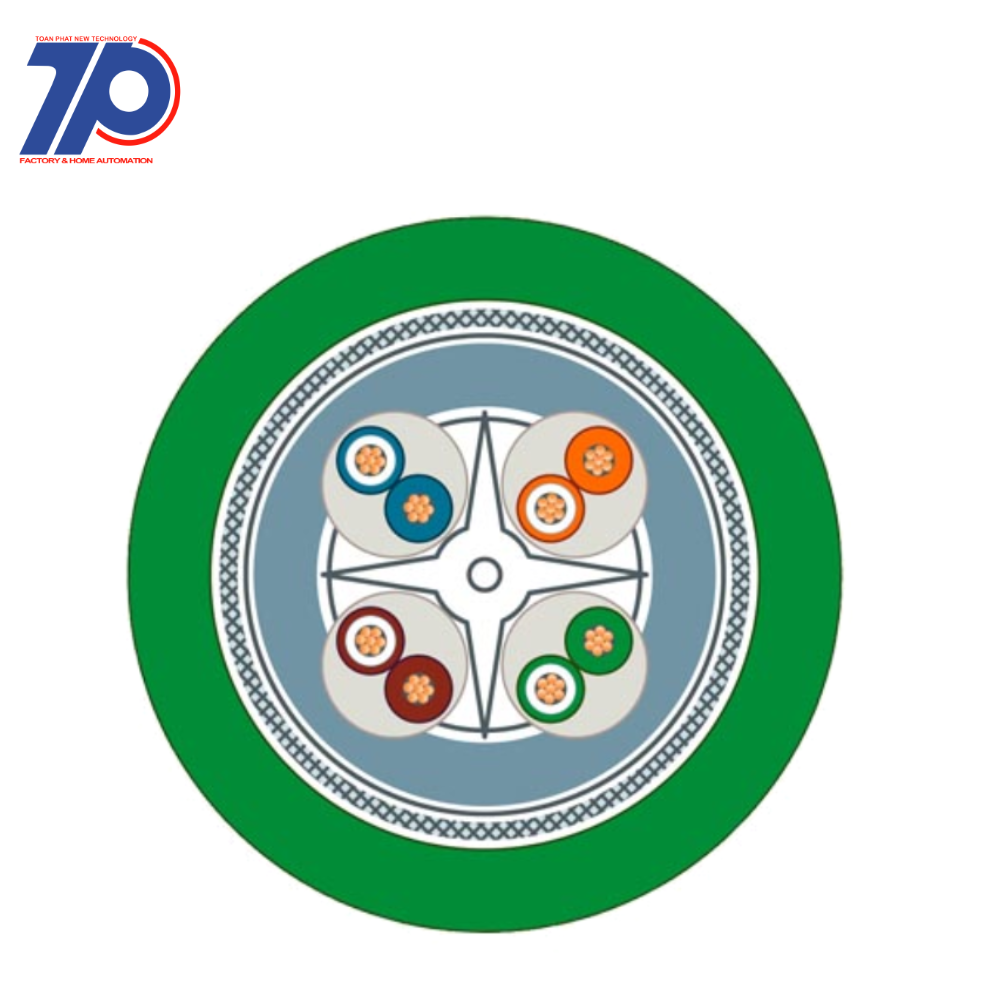

Industrial Ethernet FastConnect TP robust flexible GP cable 2x2 (PROFINET Type B), TPE protective jacket, with flexible cores, for connection to FC RJ45 plug and FC outlet RJ45, 4-core, shielded, Cat5e, sold by the meter, delivery unit max. 1000 m minimum order quantity 20 m.
Thông số kỹ thuật
| FEATURE | VALUE |
| Number of stranding elements | 2 |
| Permitted cable outer temperature after assembling without vibration | 75 °C |
| Min. permitted bending radius, moving application with forced guidance | 52 mm |
| Diameter conductor | 0.75 mm |
| Category | 5E |
| Conductor surface | Bare |
| Screen over stranding element | None |
| Permitted cable outer temperature during assembling/handling | 75 °C |
| Colour outer sheath | Green |
| Stranding element | Quad |
| Permitted cable outer temperature after assembling without vibration | -40 °C |
| Permitted cable outer temperature during assembling/handling | -20 °C |
| Screen over stranding | Foil + braiding |
| NVP value | 69 % |
| Outer diameter approx. | 6.5 mm |
| Min. permitted bending radius, moving application/free movement | 52 mm |
| Min. permitted bending radius, stationary application/permanent installation | 52 mm |
| Number of cores | 4 |
| Reaction-to-fire according to EN 13501-6: Class | Eca |
