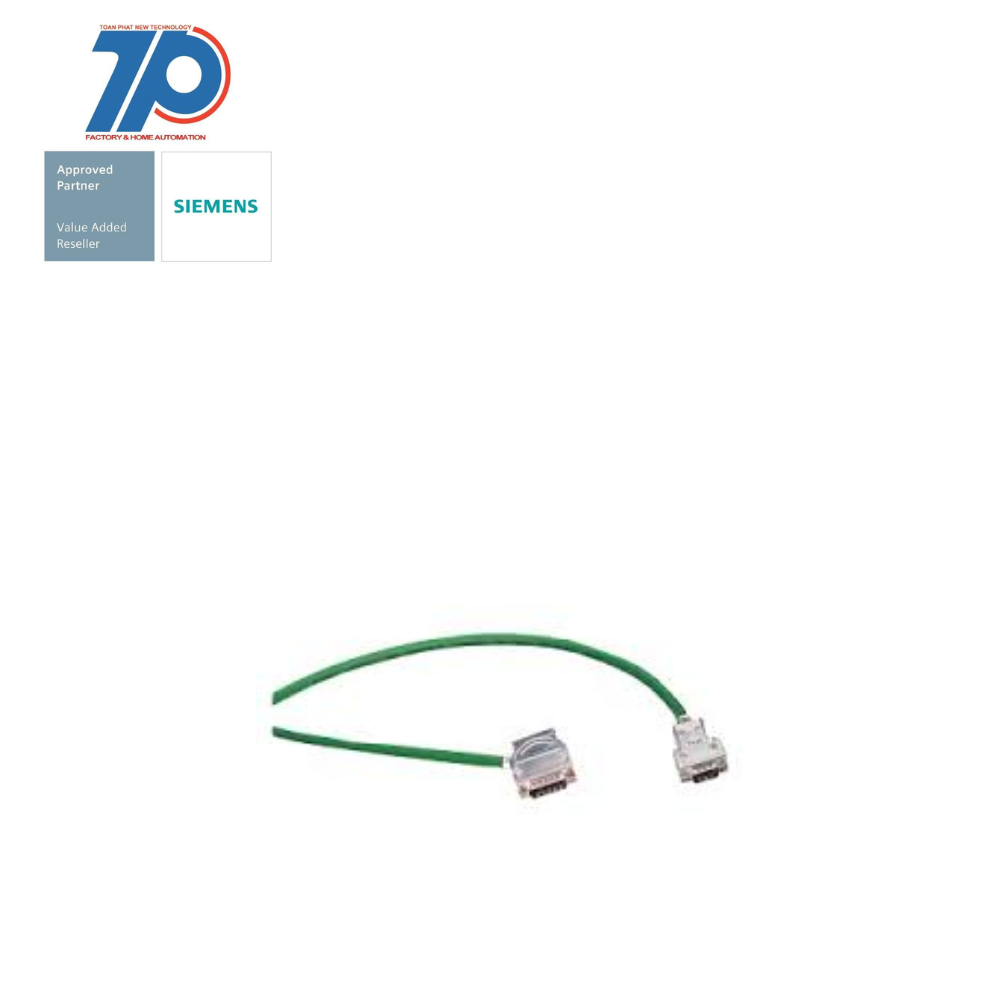

Material ID: 6XV1850-0AH10
- ITP Standard Cable for Industrial Ethernet J-02YSCY 2x2X0.64/1.5 PIMF F
- Installation cable 2x2-core for on-site assembly of connector
- Non-assembled
- Sold by the meter
- Minimum order quantity: 20 m
- Delivery unit: max. 1000 m
- SIMATIC NET Cables ITP Standard Cable GP for Industrial Ethernet
- For construction of Industrial Twisted Pair (ITP) networks
- Double, extra thick shielding for laying in industrial areas with strong electro-magnetic fields
- Silicone-free, suitable for use in the automotive industry
- Easy installation
- Cost effective connection of terminal devices
- Data transfer immune to interference due to double shielding with foil and braided shield
- Exceeds Category 5 of the ISO/IEC 11801 and EN 50173 international cabling standards
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Min. permitted bending radius, moving application with forced guidance | 45 mm |
| Min. permitted bending radius, stationary application/permanent installation | 45 mm |
| Colour outer sheath | Green |
| Permitted cable outer temperature after assembling without vibration | -40 °C |
| Screen over stranding | Braiding |
| Permitted cable outer temperature during assembling/handling | -40 °C |
| Permitted cable outer temperature after assembling without vibration | 70 °C |
| Number of stranding elements | 2 |
| Number of cores | 4 |
| Diameter conductor | 0.64 mm |
| Stranding element | Pairs |
| Conductor surface | Bare |
| Screen over stranding element | Foil |
| Min. permitted bending radius, moving application/free movement | 45 mm |
| Core identification | Colour |
| Permitted cable outer temperature during assembling/handling | 70 °C |
| Category | 5 |
