Material ID: 6XV1870-3QH60

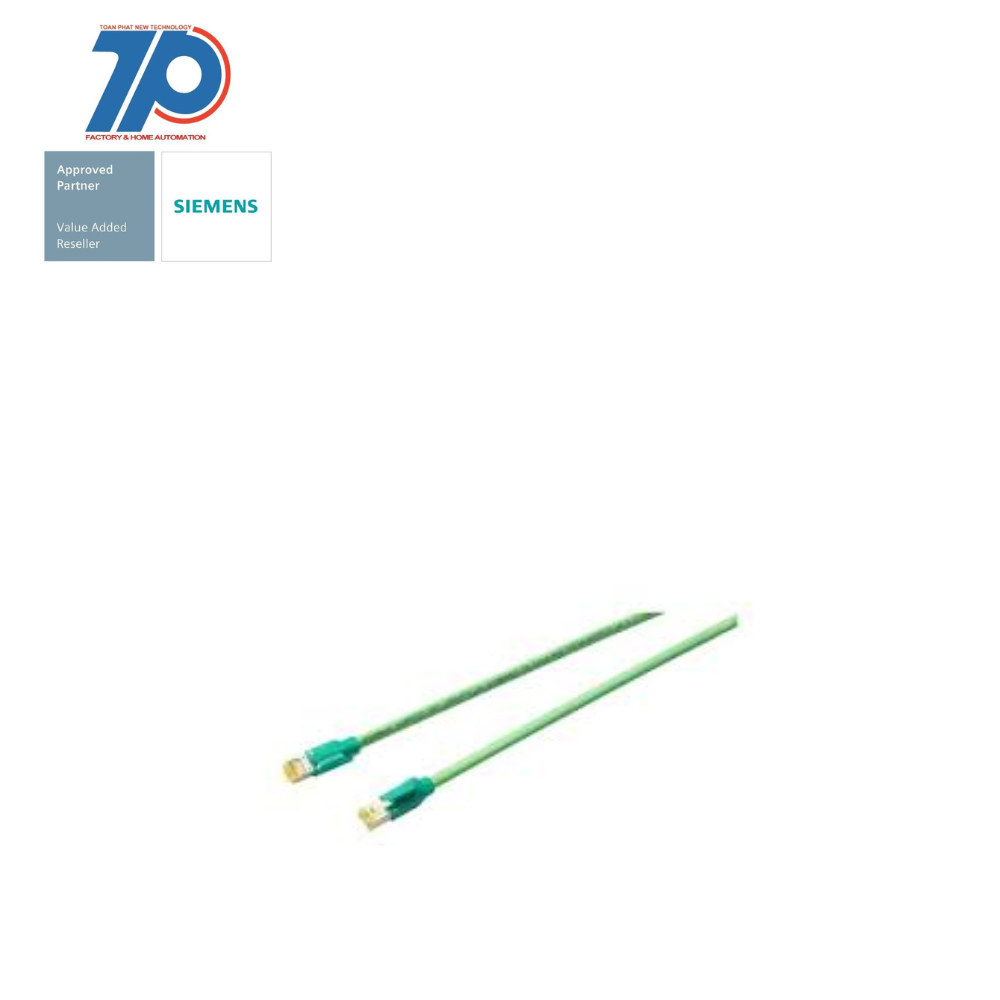

- Industrial Ethernet TP Cord RJ45/RJ45, CAT 6A, TP cable 4x2, pre-assembled with 2 RJ45 connectors, length 6 m.
- SIMATIC NETCablesIE TP Cord RJ45/RJ45, 4x2
- Simple connection of terminal devices with an RJ45 interface to the interference-proof Industrial Ethernet FastConnect cabling system (10/100/1000 Mbps).
- Silicone-free, therefore suitable for use in the automotive industry (for example on paint lines).
- Quick and error-free commissioning thanks to pre-assembled, factory-tested patch cables.
- Simple cable laying due to small cable diameter.
- Color-coded RJ45 connectors for differentiation between crossed and uncrossed lines (crossed: RJ45 connector red on both sides, not crossed: RJ45 connector green on both sides).
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| UV resistant | false |
| Outer diameter approx. | 6.2 mm |
| NVP value | 80 % |
| Screen over stranding element | Foil |
| Suitable for underground installation | false |
| Conductor surface | Bare |
| Number of cores | 8 |
| Colour outer sheath | Green |
| Number of stranding elements | 4 |
| Min. permitted bending radius, moving application/free movement | 43.5 mm |
| Permitted cable outer temperature during assembling/handling | -25 °C |
| Core identification | Colour |
| Min. permitted bending radius, stationary application/permanent installation | 43.5 mm |
| Reaction-to-fire according to EN 13501-6: Class | Eca |
| Min. permitted bending radius, moving application with forced guidance | 43.5 mm |
| Permitted cable outer temperature after assembling without vibration | 80 °C |
| Permitted cable outer temperature after assembling without vibration | -25 °C |
| Screen over stranding | Braiding |
| Diameter conductor | 0.5 mm |
| Stranding element | Pairs |
| Permitted cable outer temperature during assembling/handling | 80 °C |
| Outer diameter approx. | 6.2 mm |
| UV resistant | false |
| Diameter conductor | 0.5 mm |
| Permitted cable outer temperature after assembling without vibration | 80 °C |
| Reaction-to-fire according to EN 13501-6: Class | Eca |
| Number of stranding elements | 4 |
| Min. permitted bending radius, moving application/free movement | 43.5 mm |
| Permitted cable outer temperature after assembling without vibration | -25 °C |
| NVP value | 80 % |
| Conductor surface | Bare |
| Suitable for underground installation | false |
| Number of cores | 8 |
| Permitted cable outer temperature during assembling/handling | -25 °C |
| Colour outer sheath | Green |
| Stranding element | Pairs |
| Min. permitted bending radius, moving application with forced guidance | 43.5 mm |
| Screen over stranding | Braiding |
| Min. permitted bending radius, stationary application/permanent installation | 43.5 mm |
| Screen over stranding element | Foil |
| Permitted cable outer temperature during assembling/handling | 80 °C |
